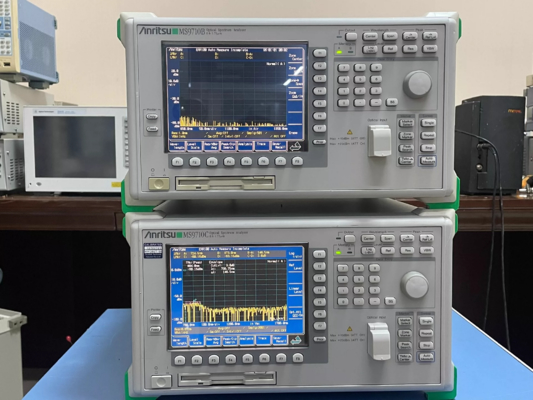

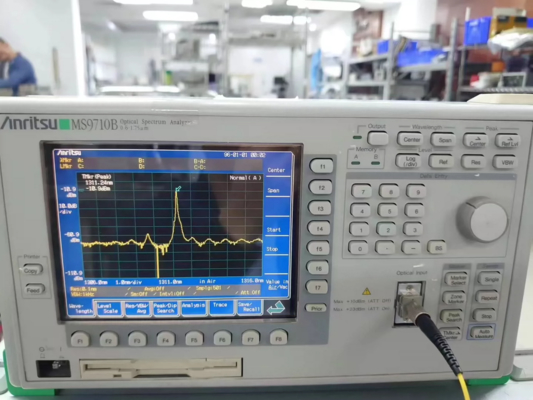

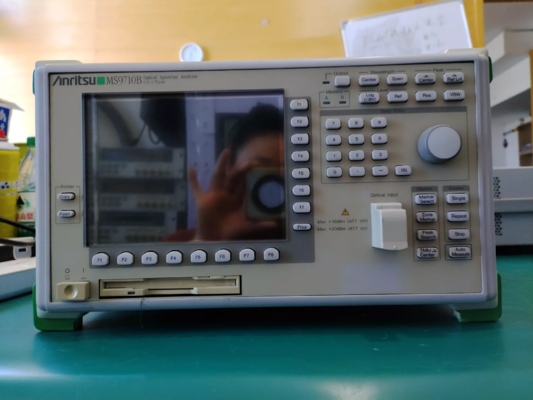

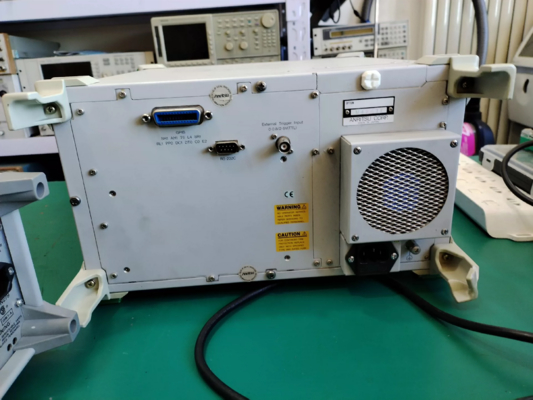

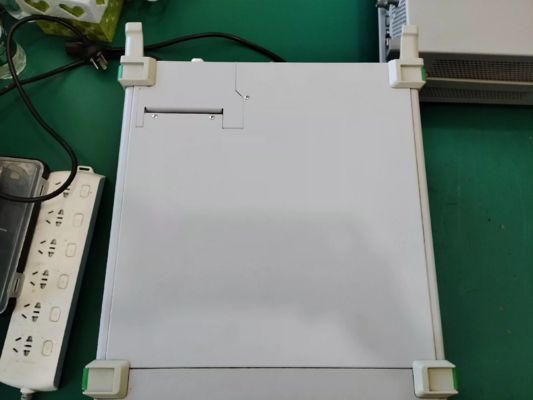

MS9710B Anritsu Optical Spectrum Analyzer 600–1750 Nm OSA 0.07 Nm RBW 70 DB Dynamic Range

MS9710B Anritsu Optical Spectrum Analyzer 600–1750 Nm OSA 0.07 Nm RBW 70 DB Dynamic Range
MS9710B Anritsu Optical Spectrum Analyzer 600–1750 Nm OSA 0.07 Nm RBW 70 DB Dynamic Range MS9710B Anritsu Optical Spectrum Analyzer 600–1750 Nm OSA 0.07 Nm RBW 70 DB Dynamic Range MS9710B Anritsu Optical Spectrum Analyzer 600–1750 Nm OSA 0.07 Nm RBW 70 DB Dynamic Range MS9710B Anritsu Optical Spectrum Analyzer 600–1750 Nm OSA 0.07 Nm RBW 70 DB Dynamic Range MS9710B Anritsu Optical Spectrum Analyzer 600–1750 Nm OSA 0.07 Nm RBW 70 DB Dynamic Range

Large Image :  MS9710B Anritsu Optical Spectrum Analyzer 600–1750 Nm OSA 0.07 Nm RBW 70 DB Dynamic Range

Product Details:
Brand Name: Anritsu
Model Number: MS9710B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Contact Now Chat Now

MS9710B Anritsu Optical Spectrum Analyzer 600–1750 Nm OSA 0.07 Nm RBW 70 DB Dynamic Range

Description
New / Used: Used Wavelength Range: 600 – 1750 Nm; Sweep Width 0.2 – 1200 Nm.
Resolution Bandwidth (FWHM): 0.07 / 0.1 / 0.2 / 0.5 / 1 Nm; Resolution Accuracy ≤±7% At 0.1 Nm. Dynamic Range (1550 Nm, 0.07 Nm RBW): 70 DB @ 1 Nm Offset (High-DR), 62 DB @ 1 Nm (Normal).
Wavelength Accuracy: ±0.3 Nm (600–1750 Nm); ±0.05 Nm After Internal Ref. Calibration (1530–1570 Nm, 0.07–0.2 Nm RBW). Sensitivity / Input Level: –90 DBm RMS Noise (1.25–1.6 µm); Measurement Level –90 To +10 DBm (1250–1600 Nm) And Up To +20 DBm With Internal Attenuator.
Highlight:

MS9710B Anritsu Optical Spectrum Analyzer

,

Anritsu Optical Spectrum Analyzer 1750Nm

,

optical spectrum analyser 0.07 Nm

Anritsu MS9710B — 600–1750 nm OSA, 0.07 nm RBW, 70 dB Dynamic Range Optical Spectrum Analyzer
Product Specifications
New / Used Used
Wavelength Range 600 – 1750 nm; sweep width 0.2 – 1200 nm.
Resolution Bandwidth (FWHM) 0.07 / 0.1 / 0.2 / 0.5 / 1 nm; resolution accuracy ≤±7% at 0.1 nm.
Dynamic Range (1550 nm, 0.07 nm RBW) 70 dB @ 1 nm offset (High-DR), 62 dB @ 1 nm (Normal).
Wavelength Accuracy ±0.3 nm (600–1750 nm); ±0.05 nm after internal ref. calibration (1530–1570 nm, 0.07–0.2 nm RBW).
Sensitivity / Input Level –90 dBm RMS noise (1.25–1.6 µm); measurement level –90 to +10 dBm (1250–1600 nm) and up to +20 dBm with internal attenuator.
Product Description
The MS9710B is a diffraction-grating optical spectrum analyzer covering 600 to 1750 nm with minimum 0.07 nm RBW for general optical and WDM work. High-dynamic-range mode achieves 70 dB at 1 nm offset, while -90 dBm sensitivity and ±0.4 dB level accuracy support low-level measurements. Wavelength accuracy can be tightened to ±0.05 nm using the optional internal reference source and auto calibration. Standard GPIB and RS-232C enable automated testing; sweep time is as fast as 0.5 s per 500 nm. Refurbished units are typically supplied calibrated, offering reliable performance at lower cost.
MS9710B Anritsu Optical Spectrum Analyzer 600–1750 Nm OSA 0.07 Nm RBW 70 DB Dynamic Range 0
Contact Us for a Fast Quote

Interested in an Anritsu MS9710B or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:
    • Send a tailored quotation and any current promotions
    • Provide extra photos, test data, and full configuration details
    • Discuss shipping, duties, warranty, and any other specifics you need
Looking for other models? Our inventory changes daily—ask for the latest list of spectrum analyzers and RF equipment.

MS9710B Anritsu Optical Spectrum Analyzer 600–1750 Nm OSA 0.07 Nm RBW 70 DB Dynamic Range 1
MS9710B Anritsu Optical Spectrum Analyzer 600–1750 Nm OSA 0.07 Nm RBW 70 DB Dynamic Range 2

Frequently Asked Questions (FAQ)
Performance Assurance

Every unit is calibrated at an ISO/IEC 17025 accredited laboratory. The original calibration certificate, marked TESTRO Certified, is linked to the unit's serial number and included in the shipment.

Integrity of Internal Components
  • A set of high-resolution teardown photographs showing seals, fasteners, and all critical modules
  • A live video session in which an engineer demonstrates gain-linearity, noise-floor, and spurious-response tests in real time

All recordings remain in our cloud archive for the life of the product.

Warranty & Technical Support
  • One-year transferable warranty
  • Our in-house engineering team is available on business days to provide remote software troubleshooting or hardware-assembly guidance
International Shipping Protection
  • Custom flight case built from aviation-grade plywood with triple-layer anti-vibration foam
  • Shock- and tilt-indicator labels on every crate
  • Preferred carrier: DHL, delivery in 3-5 days to major destinations
Payment Terms

We accept T/T, wire transfer, credit card.

On-Site Inspection

Customers are welcome to visit our Shenzhen warehouse and refurbishment line to inspect calibration benches, burn-in racks, and inventory.
