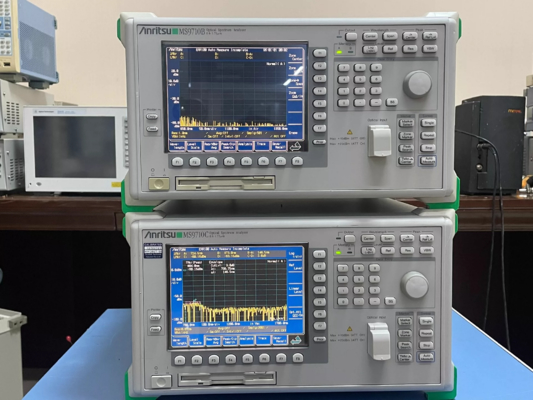

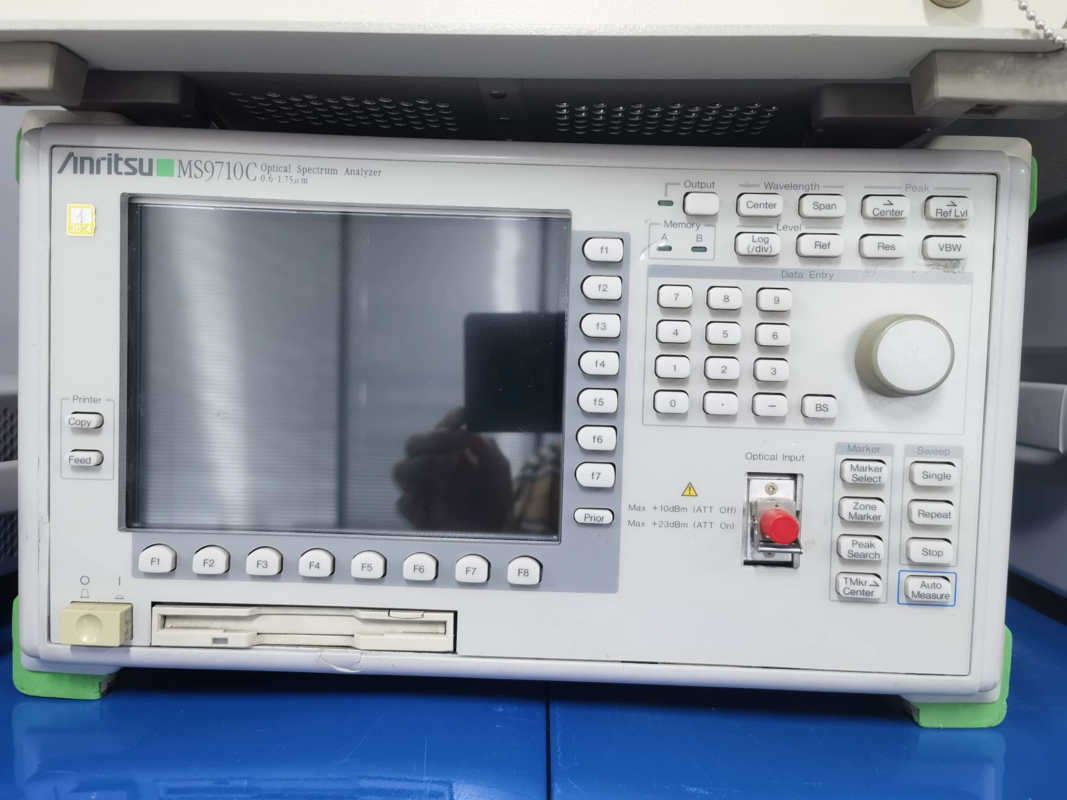

70 dB Dynamic Range Optical Spectrum Analyzer 600–1750nm Anritsu MS9170C

Large Image : 70 dB Dynamic Range Optical Spectrum Analyzer 600–1750nm Anritsu MS9170C

Product Details:

Brand Name:	Anritsu
Model Number:	MS9170C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	3-5 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram

Contact Now Chat Now

70 dB Dynamic Range Optical Spectrum Analyzer 600–1750nm Anritsu MS9170C

Description

New / Used:	Used	Wavelength Range:	600 – 1750 Nm (inferred; Please Confirm Against The Unit’s Option List/label).
Resolution Bandwidth (FWHM)::	Down To 0.05–0.07 Nm Typical For The Series	Dynamic Range:	70 DB @ 1 Nm Offset; ~42 DB @ 0.2 Nm (series Typical; Verify On Your Unit).
Sensitivity:	–90 DBm Typ. (1250–1610 Nm, 1 Nm RBW)	Wavelength Accuracy:	±0.3 Nm (600–1750 Nm); ±20–50 Pm In C/L Band With Calibration (series Typical).
Highlight:	1750nm optical spectrum analyser , 1750nm optical spectrum analyzer , ms9170c optical spectrum analyser

Anritsu MS9170C — 600–1750 nm, 70 dB Dynamic-Range Optical Spectrum Analyzer

Product Specifications

New / Used	Used
Wavelength Range	600 – 1750 nm (inferred; please confirm against the unit's option list/label)
Resolution Bandwidth (FWHM)	down to 0.05–0.07 nm typical for the series
Dynamic Range	70 dB @ 1 nm offset; ~42 dB @ 0.2 nm (series typical; verify on your unit)
Sensitivity	–90 dBm typ. (1250–1610 nm, 1 nm RBW)
Wavelength Accuracy	±0.3 nm (600–1750 nm); ±20–50 pm in C/L band with calibration (series typical)

Product Overview

The MS9170C is an Anritsu diffraction-grating OSA model referenced in telecom production tool lists and academic work. While public datasheets are scarce, contemporary MS9710B/C materials indicate this platform class covers 600-1750 nm with 0.05-0.07 nm minimum RBW, -90 dBm sensitivity and up to 70 dB dynamic range at 1 nm offset—sufficient for DWDM OSNR and narrow-band filter evaluation.

A study reports MS9170C use around 1560 nm with 200 nm span, consistent with C/L-band work. Please provide the unit's option codes/label to confirm exact wavelength accuracy, RBW set, input connector type, and presence of internal attenuator/reference source.

Contact TESTRO for a Fast Quote

Interested in an Anritsu MS9170C or a similar model?

Drop your WhatsApp number or e-mail on our website and we will:
- Send a tailored quotation and any current promotions
- Provide extra photos, test data, and full configuration details
- Discuss shipping, duties, warranty, and any other specifics you need

Looking for other models? Our inventory changes daily—ask for the latest list of spectrum analyzers and RF equipment.

TESTRO Advantages

Laboratory-Verified Performance - Every unit ships with an ISO/IEC 17025 calibration certificate (TESTRO Certified) tied to its serial number
Full Internal Transparency - High-resolution teardown photos plus a live video test (gain-linearity, noise-floor, spurious response); recordings are stored for the product's lifetime
Warranty & Technical Support - One-year warranty and weekday remote assistance from the in-house engineering team for both software and hardware issues
Secure, Rapid Shipping - Aviation-grade flight case with triple-layer anti-vibration foam and shock/tilt indicators; priority DHL delivery in 3-5 days to major destinations
Flexible Payment Options - Accepts T/T, wire transfer, credit card
On-Site Inspection Welcome - Customers may visit the Shenzhen warehouse and refurbishment line to view calibration benches, burn-in racks, and inventory
