High Accuracy Used Optical Spectrum Analyzer Agilent 86142A 600 – 1700 Nm

High Accuracy Used Optical Spectrum Analyzer Agilent 86142A 600 – 1700 Nm
High Accuracy Used Optical Spectrum Analyzer Agilent 86142A 600 – 1700 Nm High Accuracy Used Optical Spectrum Analyzer Agilent 86142A 600 – 1700 Nm High Accuracy Used Optical Spectrum Analyzer Agilent 86142A 600 – 1700 Nm

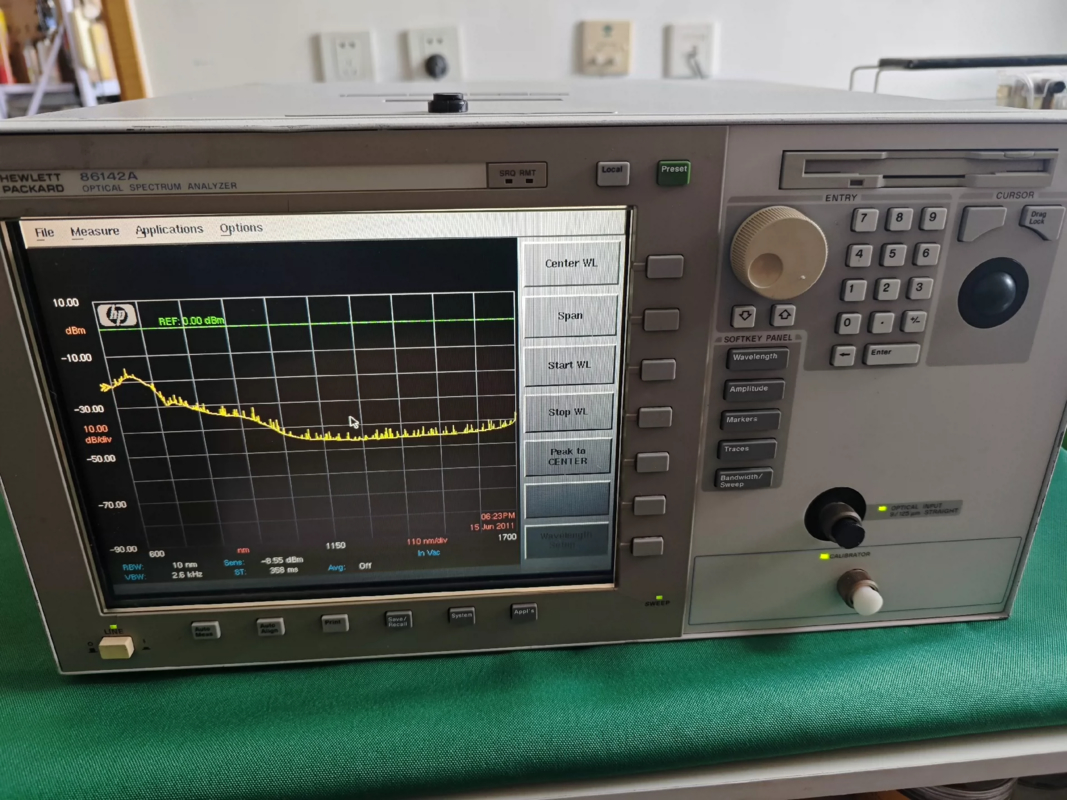

Large Image :  High Accuracy Used Optical Spectrum Analyzer Agilent 86142A 600 – 1700 Nm

Product Details:
Brand Name: Keysight/Agilent/HP
Model Number: Agilent 86142A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Contact Now Chat Now

High Accuracy Used Optical Spectrum Analyzer Agilent 86142A 600 – 1700 Nm

Description
New / Used: Used Wavelength Range: 600 Nm – 1700 Nm
Resolution Bandwidth: 0.06, 0.1, 0.2, 0.5, 1, 2, 5, 10 Nm Selectable (0.06 Nm Minimum) Dynamic Range: 70 DB Peak-to-baseline @ 0.1 Nm RBW, 0.5 Nm Offset, 1250–1610 Nm
Sensitivity: –90 DBm Typ. (1250–1610 Nm, 1 Nm RBW) Wavelength Accuracy: ±0.5 Nm (after Internal Calibrator)
Highlight:

used optical spectrum analyzer agilent

,

used optical analyzer spectrum

,

agilent optical analyzer spectrum

Agilent 86142A — 600 – 1700 nm High-Accuracy Optical Spectrum Analyzer
Attribute Value
New / Used Used
Wavelength Range 600 nm – 1700 nm
Resolution Bandwidth 0.06, 0.1, 0.2, 0.5, 1, 2, 5, 10 nm selectable (0.06 nm minimum)
Dynamic Range 70 dB peak-to-baseline @ 0.1 nm RBW, 0.5 nm offset, 1250–1610 nm
Sensitivity –90 dBm typ. (1250–1610 nm, 1 nm RBW)
Wavelength Accuracy ±0.5 nm (after internal calibrator)

The pre-owned Agilent 86142A delivers laboratory-grade optical spectral analysis across the full 600 -1700 nm window, combining 0.06 nm resolution with a 70 dB dynamic range so dense DWDM channels and ASE pedestals are clearly separated in a single sweep. Typical -90 dBm sensitivity captures faint ASE tails and narrow-line lasers without an external pre-amp, while the built-in wavelength calibrator maintains ±0.5 nm absolute accuracy--crucial for compliance testing of EDFAs and passive components. Fast 40 nm / 50 ms scans and SCPI/LAN control accelerate production, and option plug-ins add EELED sources or wavelength calibrators for in-situ device characterisation.

Refurbished units ship ISO-17025-calibrated with the latest firmware, cutting capital expenditure and lead-time yet preserving Agilent reliability, connector flexibility, and long-term serviceability.

High Accuracy Used Optical Spectrum Analyzer Agilent 86142A 600 – 1700 Nm 0
Contact TESTRO for a Fast Quote

Interested in an Agilent E4446A -- 44 GHz Wideband Spectrum Analyzer or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:
    • Send a tailored quotation and any current promotions
    • Provide extra photos, test data, and full configuration details
    • Discuss shipping, duties, warranty, and any other specifics you need
Looking for other models? Our inventory changes daily--ask for the latest list of spectrum analyzers and RF equipment.

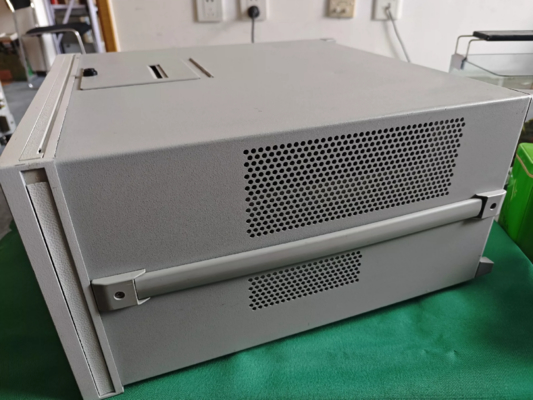

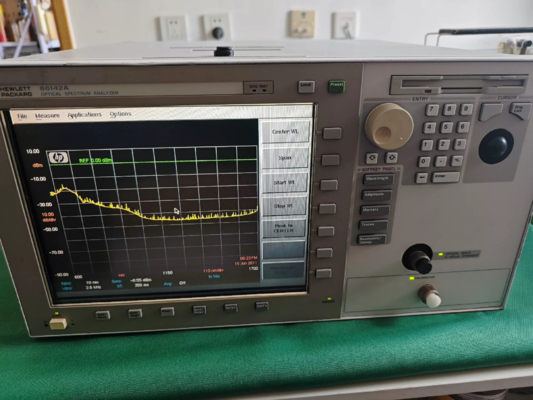

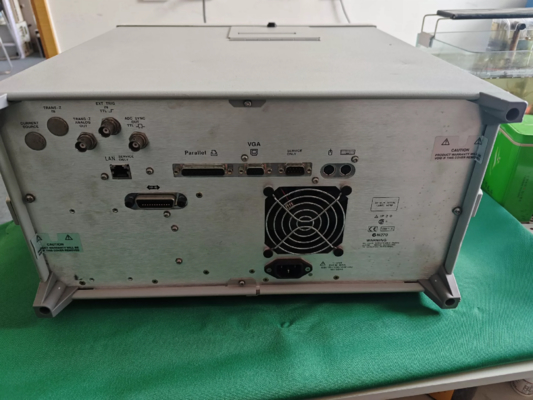

High Accuracy Used Optical Spectrum Analyzer Agilent 86142A 600 – 1700 Nm 1 High Accuracy Used Optical Spectrum Analyzer Agilent 86142A 600 – 1700 Nm 2

TESTRO Advantages
Laboratory-Verified Performance - Every unit ships with an ISO/IEC 17025 calibration certificate (TESTRO Certified) tied to its serial number.
Full Internal Transparency - High-resolution teardown photos plus a live video test (gain-linearity, noise-floor, spurious response); recordings are stored for the product's lifetime.
Warranty & Technical Support - One-year warranty and weekday remote assistance from the in-house engineering team for both software and hardware issues.
Secure, Rapid Shipping - Aviation-grade flight case with triple-layer anti-vibration foam and shock/tilt indicators; priority DHL delivery in 3-5 days to major destinations.
Flexible Payment Options - Accepts T/T, wire transfer, credit card.
On-Site Inspection Welcome - Customers may visit the Shenzhen warehouse and refurbishment line to view calibration benches, burn-in racks, and inventory.
