Used Rohde & Schwarz R&S NRP2 110 GHz EMC Test Equipment Multi Channel RF Power Meter

Large Image : Used Rohde & Schwarz R&S NRP2 110 GHz EMC Test Equipment Multi Channel RF Power Meter

Product Details:

Brand Name:	Rohde & Schwarz
Model Number:	R&S NRP2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	3-5 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram

Contact Now Chat Now

Used Rohde & Schwarz R&S NRP2 110 GHz EMC Test Equipment Multi Channel RF Power Meter

Description

New / Used:	Used	Supported Sensor Frequency Range:	DC – 110 GHz (depends On Attached R&S NRP-Zxx / NRPxxS / SN Sensors)
Dynamic Range:	Up To 90 DB With Three-path Diode Sensors (–70 DBm To +20 DBm)	Measurement Channels:	2 Sensor Inputs Standard, Expandable To 4 With Option NRP-B5/B6
Measurement Speed:	> 1500 Readings / S Per Channel (fast Mode)	Remote Interfaces:	USB 2.0, LAN 10/100Base-T; Optional GPIB, SCPI Command Set For Automation
Highlight:	110 ghz emc test equipment , multi channel rf power meter , emc test equipment multi channel

Rohde & Schwarz R&S NRP2 — 110 GHz Multi-Channel RF Power Meter EMC Test Equipment

Attribute	Value
New / Used	Used
Supported Sensor Frequency Range	DC – 110 GHz (depends on attached R&S NRP-Zxx / NRPxxS / SN sensors)
Dynamic Range	up to 90 dB with three-path diode sensors (–70 dBm to +20 dBm)
Measurement Channels	2 sensor inputs standard, expandable to 4 with option NRP-B5/B6
Measurement Speed	> 1500 readings / s per channel (fast mode)
Remote Interfaces	USB 2.0, LAN 10/100Base-T; optional GPIB, SCPI command set for automation

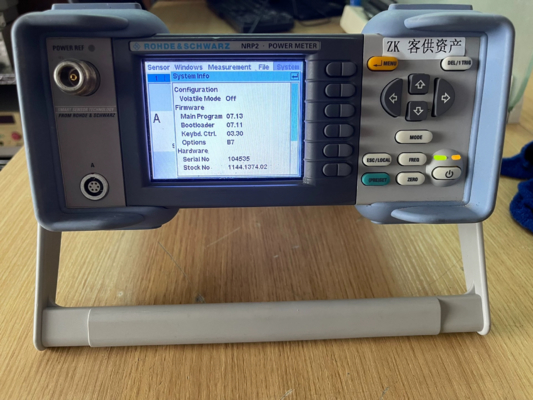

This pre-owned R&S NRP2 is the central display and control unit for the company's diode and thermal power-sensor families, turning any R&S NRP-Zxx or NRPxxS/SN head into a metrology-grade RF power-measurement station.

Two front-panel sensor inputs (software-upgradeable to four) plus a bright colour display let operators view absolute, relative or statistical (CCDF) power on up to four channels simultaneously --ideal for parallel calibration of multi-port radios or MIMO DUTs. Combined with R&S three-path diode sensors the meter delivers a 90 dB dynamic range and sub-0.05 dB linearity, while burst-mode reading speeds above 1500 samples / s slash test-time in high-volume lines. USB and LAN interfaces, SCPI scripting and LabView drivers ensure seamless integration with existing ATE racks, and firmware-licence keys add envelope, pulse and trace functions without hardware changes.

Supplied fully tested, freshly calibrated and firmware-current, this second-hand NRP2 offers immediate, cost-efficient precision power metering backed by Rohde & Schwarz reliability.

Interested in Rohde & Schwarz R&S NRP2 or a similar model?

Drop your WhatsApp number or e-mail on our website and we will:
- Send a tailored quotation and any current promotions.
- Provide extra photos, test data, and full configuration details.
- Discuss shipping, duties, warranty, and any other specifics you need.

Looking for other models? Our inventory changes daily--ask for the latest list of spectrum analyzers and RF equipment.

Frequently Asked Questions (FAQ)

1/ Performance Assurance

Every unit is calibrated at an ISO/IEC 17025 accredited laboratory. The original calibration certificate, marked TESTRO Certified, is linked to the unit's serial number and included in the shipment.

2/ Integrity of Internal Components

A set of high-resolution teardown photographs showing seals, fasteners, and all critical modules.
A live video session in which an engineer demonstrates gain-linearity, noise-floor, and spurious-response tests in real time. All recordings remain in our cloud archive for the life of the product.

3/ Warranty & Technical Support

One-year transferable warranty.
Our in-house engineering team is available on business days to provide remote software troubleshooting or hardware-assembly guidance.

4/ International Shipping Protection

Custom flight case built from aviation-grade plywood with triple-layer anti-vibration foam.
Shock- and tilt-indicator labels on every crate.
Preferred carrier: DHL, delivery in 3-5 days to major destinations.

5/ Payment Terms

We accept T/T, wire transfer, credit card.

6/ On-Site Inspection

Customers are welcome to visit our Shenzhen warehouse and refurbishment line to inspect calibration benches, burn-in racks, and inventory.
