Rohde & Schwarz 3.6 GHz CISPR Compliant Emi Testing Equipment R&S ESR3

Large Image : Rohde & Schwarz 3.6 GHz CISPR Compliant Emi Testing Equipment R&S ESR3

Product Details:

Brand Name:	Rohde & Schwarz
Model Number:	R&S ESR-3 (ESR3)

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	3-5 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram

Contact Now Chat Now

Rohde & Schwarz 3.6 GHz CISPR Compliant Emi Testing Equipment R&S ESR3

Description

New / Used:	Used	Frequency Range:	9 KHz – 3.6 GHz (option Extends Down To 10 Hz)
Resolution Bandwidths:	10 Hz – 10 MHz (–3 DB) Plus CISPR 200 Hz / 9 KHz / 120 KHz / 1 MHz Filters	DANL:	Typ. –168 DBm/Hz @ 1 Hz RBW With 20 DB Pre-amplifier
Total Measurement Uncertainty:	≤ 0.3 DB For 10 MHz – 3.6 GHz	Detectors / Interfaces:	Peak, Quasi-Peak, CISPR AVG & RMS; USB & LAN Standard, Optional GPIB And 20 DB Pre-amp (ESR-B22)
Highlight:	compliant emi testing equipment , emi testing equipment r&s , cispr emi emc testing equipment

Rohde & Schwarz R&S ESR3 — 3.6 GHz CISPR-Compliant EMI Test Receiver EMC Test Equipment

Attribute	Value
New / Used	Used
Frequency Range	9 kHz – 3.6 GHz (option extends down to 10 Hz)
Resolution Bandwidths	10 Hz – 10 MHz (–3 dB) plus CISPR 200 Hz / 9 kHz / 120 kHz / 1 MHz filters
DANL	typ. –168 dBm/Hz @ 1 Hz RBW with 20 dB pre-amplifier
Total Measurement Uncertainty	≤ 0.3 dB for 10 MHz – 3.6 GHz
Detectors / Interfaces	Peak, Quasi-Peak, CISPR AVG & RMS; USB & LAN standard, optional GPIB and 20 dB pre-amp (ESR-B22)

Product Description

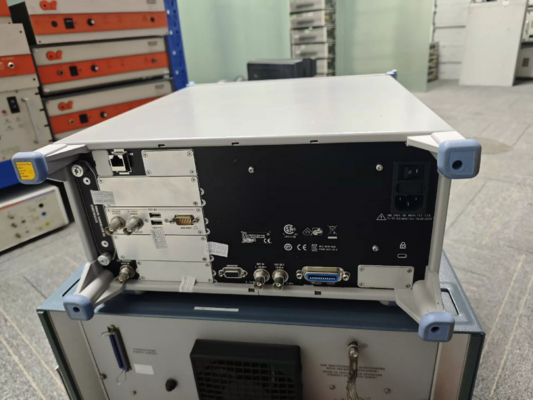

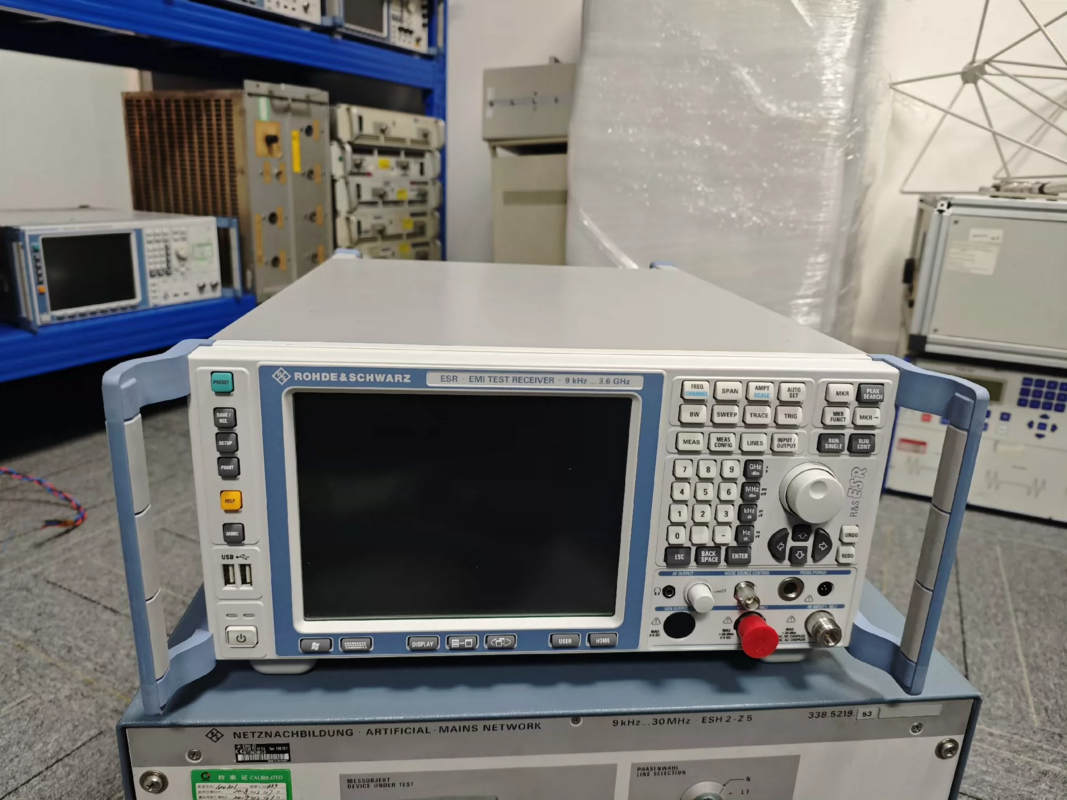

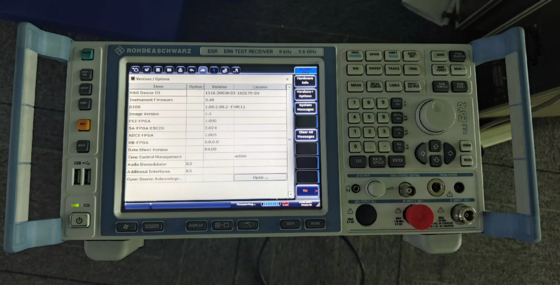

The pre-owned R &S ESR3 unites a CISPR 16-1-1-compliant EMI receiver with a high-dynamic-range spectrum analyzer, providing full-standard emissions testing from 9 kHz to 3.6 GHz without external mixers.

Integrated preselection, wide 10 Hz -10 MHz RBWs and selectable peak, quasi-peak and average detectors let engineers verify commercial limits and hunt spurious emitters in a single sweep. A typical -168 dBm noise floor (with the 20 dB pre-amp) and ≤ 0.3 dB total uncertainty secure confident margin analysis, while USB/LAN--and optional GPIB--support automated limit-line scans and remote logging.

Supplied fully tested, freshly calibrated and firmware-current, this ESR3 offers immediate, cost-efficient pre-compliance capability without sacrificing Rohde & Schwarz precision or long-term serviceability.

Interested in Rohde & Schwarz R&S ESR3 or a similar model?

Drop your WhatsApp number or e-mail on our website and we will:
- Send a tailored quotation and any current promotions.
- Provide extra photos, test data, and full configuration details.
- Discuss shipping, duties, warranty, and any other specifics you need.

Looking for other models? Our inventory changes daily--ask for the latest list of spectrum analyzers and RF equipment.

Frequently Asked Questions (FAQ)

1/ Performance Assurance

Every unit is calibrated at an ISO/IEC 17025 accredited laboratory. The original calibration certificate, marked TESTRO Certified, is linked to the unit's serial number and included in the shipment.

2/ Integrity of Internal Components

A set of high-resolution teardown photographs showing seals, fasteners, and all critical modules.
A live video session in which an engineer demonstrates gain-linearity, noise-floor, and spurious-response tests in real time. All recordings remain in our cloud archive for the life of the product.

3/ Warranty & Technical Support

One-year transferable warranty.
Our in-house engineering team is available on business days to provide remote software troubleshooting or hardware-assembly guidance.

4/ International Shipping Protection

Custom flight case built from aviation-grade plywood with triple-layer anti-vibration foam.
Shock- and tilt-indicator labels on every crate.
Preferred carrier: DHL, delivery in 3-5 days to major destinations.

5/ Payment Terms

We accept T/T, wire transfer, credit card.

6/ On-Site Inspection

Customers are welcome to visit our Shenzhen warehouse and refurbishment line to inspect calibration benches, burn-in racks, and inventory.
