Rohde & Schwarz R&S ESCI7 EMC Test Equipment 7GHz CISPR Compliant EMI Receiver

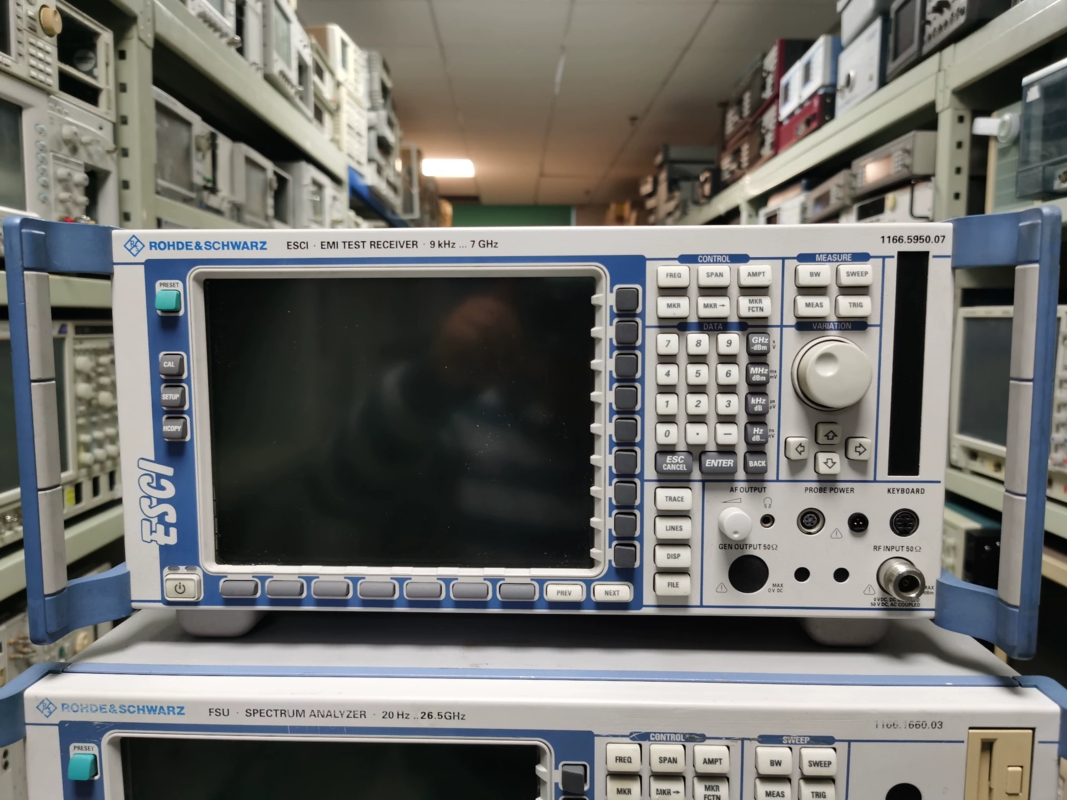

Large Image : Rohde & Schwarz R&S ESCI7 EMC Test Equipment 7GHz CISPR Compliant EMI Receiver

Product Details:

Brand Name:	Rohde & Schwarz
Model Number:	R&S ESCI7

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	3-5 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram

Contact Now Chat Now

Rohde & Schwarz R&S ESCI7 EMC Test Equipment 7GHz CISPR Compliant EMI Receiver

Description

New / Used:	Used	Frequency Range:	9 KHz – 7 GHz
Resolution Bandwidths:	10 Hz – 10 MHz (–3 DB) Plus CISPR 200 Hz / 9 KHz / 120 KHz / 1 MHz Filters	Displayed Average Noise Level (DANL):	Typ. –153 DBm/Hz At 1 Hz RBW With Pre-amplifier
Total Measurement Uncertainty:	≤ 1 DB (< 3 GHz); ≤ 1.5 DB (3 – 7 GHz)	Detectors / Interfaces:	Peak, Quasi-Peak, CISPR AVG & RMS; USB & LAN Standard, Optional GPIB And 20 DB Pre-amp B7
Highlight:	emc test equipment 7ghz , compliant emi receiver , r&s emi receiver

Rohde & Schwarz R&S ESCI7 — 7 GHz CISPR-Compliant EMI Test Receiver EMC Test Equipment

Product Specifications

Attribute	Value
New / Used	Used
Frequency Range	9 kHz – 7 GHz
Resolution Bandwidths	10 Hz – 10 MHz (–3 dB) plus CISPR 200 Hz / 9 kHz / 120 kHz / 1 MHz filters
Displayed Average Noise Level (DANL)	typ. –153 dBm/Hz at 1 Hz RBW with pre-amplifier
Total Measurement Uncertainty	≤ 1 dB (< 3 GHz); ≤ 1.5 dB (3 – 7 GHz)
Detectors / Interfaces	Peak, Quasi-Peak, CISPR AVG & RMS; USB & LAN standard, optional GPIB and 20 dB pre-amp B7

Product Description

The pre-owned R&S ESCI7 combines a CISPR 16-1-1-compliant EMI receiver with a spectrum-analyzer front end, providing full-standard emissions measurements from 9 kHz to 7 GHz without external mixers. Integrated preselection filters, wide 10 Hz-10 MHz RBWs and selectable peak, quasi-peak and average detectors let engineers verify commercial-product limits and hunt spurs in a single sweep, while a typ. -153 dBm noise floor (with the 20 dB pre-amp) exposes even faint radiators.

Measurement uncertainty remains below 1.5 dB across the band, meeting tight compliance margins, and USB/LAN (plus optional GPIB) interfaces support automated limit-line scans and remote logging.

Supplied fully tested, freshly calibrated and firmware-current, this ESCI7 ships from stock -- delivering immediate, cost-efficient pre-compliance capability without compromising Rohde & Schwarz precision or long-term serviceability.

Interested in Rohde & Schwarz R&S ESCI7 or a similar model?

Drop your WhatsApp number or e-mail on our website and we will:
- Send a tailored quotation and any current promotions
- Provide extra photos, test data, and full configuration details
- Discuss shipping, duties, warranty, and any other specifics you need

Looking for other models? Our inventory changes daily--ask for the latest list of spectrum analyzers and RF equipment.

Frequently Asked Questions (FAQ)

1/ Performance Assurance

Every unit is calibrated at an ISO/IEC 17025 accredited laboratory. The original calibration certificate, marked TESTRO Certified, is linked to the unit's serial number and included in the shipment.

2/ Integrity of Internal Components

A set of high-resolution teardown photographs showing seals, fasteners, and all critical modules
A live video session in which an engineer demonstrates gain-linearity, noise-floor, and spurious-response tests in real time

All recordings remain in our cloud archive for the life of the product.

3/ Warranty & Technical Support

One-year transferable warranty
Our in-house engineering team is available on business days to provide remote software troubleshooting or hardware-assembly guidance

4/ International Shipping Protection

Custom flight case built from aviation-grade plywood with triple-layer anti-vibration foam
Shock- and tilt-indicator labels on every crate
Preferred carrier: DHL, delivery in 3-5 days to major destinations

5/ Payment Terms

We accept T/T, wire transfer, credit card.

6/ On-Site Inspection

Customers are welcome to visit our Shenzhen warehouse and refurbishment line to inspect calibration benches, burn-in racks, and inventory.
