7 GHz CISPR Compliant EMI Test Receiver EMC Test Equipment Rohde & Schwarz R&S ESPI7

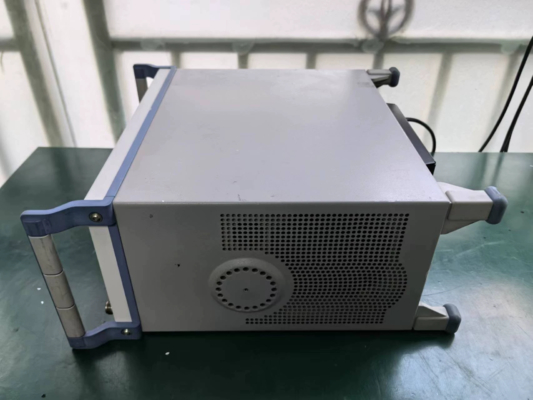

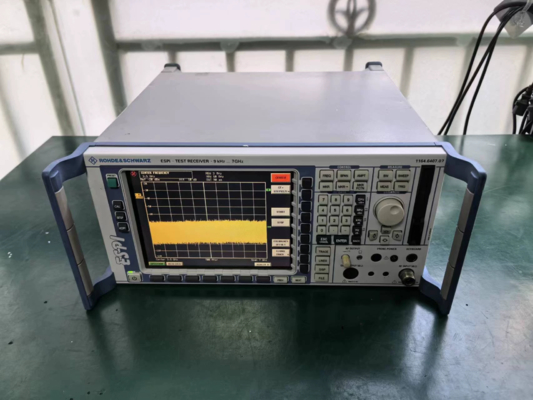

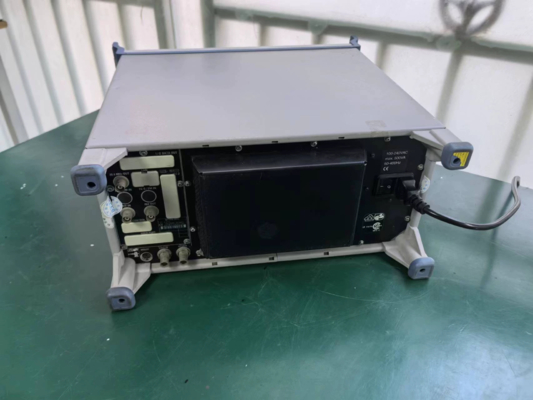

Large Image : 7 GHz CISPR Compliant EMI Test Receiver EMC Test Equipment Rohde & Schwarz R&S ESPI7

Product Details:

Brand Name:	Rohde & Schwarz
Model Number:	R&S ESPI-7

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	3-5 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Western Union,T/T

Contact Now Chat Now

7 GHz CISPR Compliant EMI Test Receiver EMC Test Equipment Rohde & Schwarz R&S ESPI7

Description

New / Used:	Used	Frequency Range:	9 KHz – 7 GHz
Resolution Bandwidths:	10 Hz – 10 MHz (–3 DB) Plus CISPR 200 Hz / 9 KHz / 120 KHz / 1 MHz Filters	Displayed Average Noise Level:	≈ –153 DBm/Hz (1 Hz RBW, ≤ 1 GHz, With 20 DB Pre-amp)
Total Measurement Uncertainty:	≤ 1 DB (< 3 GHz), ≤ 1.5 DB (3 – 7 GHz)	Detectors / Interfaces:	Peak, Quasi-Peak, CISPR AVG & RMS; USB & LAN Standard, Optional GPIB And 20 DB Pre-amp ESPI-B2
Highlight:	compliant emi test receiver , emc test equipment rohde & schwarz , cispr emi test receiver

Rohde & Schwarz R&S ESPI7 — 7 GHz CISPR-Compliant EMI Test Receiver EMC Test Equipment

Product Specifications

Attribute	Value
New / Used	Used
Frequency Range	9 kHz – 7 GHz
Resolution Bandwidths	10 Hz – 10 MHz (–3 dB) plus CISPR 200 Hz / 9 kHz / 120 kHz / 1 MHz filters
Displayed Average Noise Level	≈ –153 dBm/Hz (1 Hz RBW, ≤ 1 GHz, with 20 dB pre-amp)
Total Measurement Uncertainty	≤ 1 dB (< 3 GHz), ≤ 1.5 dB (3 – 7 GHz)
Detectors / Interfaces	Peak, Quasi-Peak, CISPR AVG & RMS; USB & LAN standard, optional GPIB and 20 dB pre-amp ESPI-B2

Product Overview

The pre-owned R&S ESPI7 combines a CISPR 16-1-1-compliant EMI receiver with a 7 GHz spectrum analyzer front end, providing engineers with full-standard emissions testing capability from 9 kHz to 7 GHz without requiring external mixers.

Built-in preselection, 10 Hz - 10 MHz resolution bandwidths, and selectable peak, quasi-peak, and average detectors enable single-sweep limit evaluation and spur hunting. With a typical -153 dBm noise floor (using the optional pre-amp) and ≤ 1.5 dB total uncertainty, this unit provides confident margin analysis.

Standard USB/LAN interfaces plus optional GPIB support automated limit-line scans and remote logging. Supplied fully tested, freshly calibrated, and with current firmware, this ESPI7 offers immediate, cost-efficient pre-compliance capability while maintaining Rohde & Schwarz precision and long-term serviceability.

Request a Quote

Interested in the Rohde & Schwarz R&S ESPI-7 or a similar model?

Drop your WhatsApp number or email on our website and we will:
Send a tailored quotation and any current promotions
Provide additional photos, test data, and full configuration details
Discuss shipping, duties, warranty, and any other specifics you need

Looking for other models? Our inventory changes daily—ask for the latest list of spectrum analyzers and RF equipment.

TESTRO Advantages

Laboratory-Verified Performance - Every unit ships with an ISO/IEC 17025 calibration certificate (TESTRO Certified) tied to its serial number.

Full Internal Transparency - High-resolution teardown photos plus a live video test (gain-linearity, noise-floor, spurious response); recordings are stored for the product's lifetime.

Warranty & Technical Support - One-year warranty and weekday remote assistance from the in-house engineering team for both software and hardware issues.

Secure, Rapid Shipping - Aviation-grade flight case with triple-layer anti-vibration foam and shock/tilt indicators; priority DHL delivery in 3-5 days to major destinations.

Flexible Payment Options - Accepts T/T, wire transfer, credit card.

On-Site Inspection Welcome - Customers may visit the Shenzhen warehouse and refurbishment line to view calibration benches, burn-in racks, and inventory.
