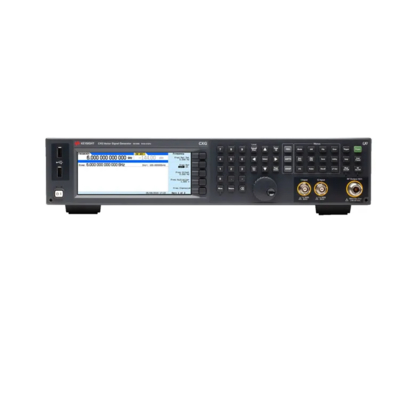

Agilent Keysight N5166B Compact Analog Signal Generator 6 GHz Analog Rf Signal Generator

Agilent Keysight N5166B Compact Analog Signal Generator 6 GHz Analog Rf Signal Generator
Agilent Keysight N5166B Compact Analog Signal Generator 6 GHz Analog Rf Signal Generator

Large Image :  Agilent Keysight N5166B Compact Analog Signal Generator 6 GHz Analog Rf Signal Generator

Product Details:
Brand Name: Keysight/Agilent/HP
Model Number: Keysight N5166B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Contact Now Chat Now

Agilent Keysight N5166B Compact Analog Signal Generator 6 GHz Analog Rf Signal Generator

Description
New / Used: Used Frequency Range: 100 KHz – 6 GHz
Frequency Resolution: 0.01 Hz (0.001 Hz With Fractional-N Option) SSB Phase Noise: ≈ –120 DBc/Hz @ 1 GHz, 20 KHz Offset (typical)
Calibrated Output Power: +20 DBm To –140 DBm (with Electronic Step Attenuator) Analog Modulation: AM, FM, φM To 1 MHz Deviation; Pulse Modulation ≤ 50 KHz
Highlight:

Compact Analog Signal Generator

,

N5166B Analog Rf Signal Generator

,

6 GHz Analog Rf Signal Generator

Agilent Keysight N5166B — 6 GHz Compact Analog Signal Generator RF Signal Generator
Attribute Value
New / Used Used
Frequency Range 100 kHz – 6 GHz
Frequency Resolution 0.01 Hz (0.001 Hz with fractional-N option)
SSB Phase Noise ≈ –120 dBc/Hz @ 1 GHz, 20 kHz offset (typical)
Calibrated Output Power +20 dBm to –140 dBm (with electronic step attenuator)
Analog Modulation AM, FM, φM to 1 MHz deviation; pulse modulation ≤ 50 kHz

This pre-owned Agilent N5166B packs a 100 kHz-to-6 GHz synthesized source, 0.01 Hz tuning and a -120 dBc/Hz noise floor into a 3-U mainframe, giving engineers a crystal-clean local oscillator or broadband stimulus from a single port. With an electronic step attenuator it delivers a calibrated +20 dBm to -140 dBm span--wide enough for PA compression, receiver sensitivity and EMC immunity tests without external pads. Built-in AM/FM/PM plus pulse modulation and fast list-mode hopping shorten automated production runs, and LAN/GPIB SCPI control drops straight into existing code.

Refurbished units ship ISO-17025-calibrated with current firmware, trimming capital expense and lead-time yet preserving Keysight reliability and upgrade paths.

Agilent Keysight N5166B Compact Analog Signal Generator 6 GHz Analog Rf Signal Generator 0
Contact TESTRO for a Fast Quote

Interested in an Agilent N5166B -- 6 GHz Compact Analog Signal Generator or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:
    • Send a tailored quotation and any current promotions.
    • Provide extra photos, test data, and full configuration details.
    • Discuss shipping, duties, warranty, and any other specifics you need.
Looking for other models? Our inventory changes daily--ask for the latest list of spectrum analyzers and RF equipment.

Agilent Keysight N5166B Compact Analog Signal Generator 6 GHz Analog Rf Signal Generator 1

TESTRO Advantages
  1. Laboratory-Verified Performance - Every unit ships with an ISO/IEC 17025 calibration certificate (TESTRO Certified) tied to its serial number.
  2. Full Internal Transparency - High-resolution teardown photos plus a live video test (gain-linearity, noise-floor, spurious response); recordings are stored for the product's lifetime.
  3. Warranty & Technical Support - One-year warranty and weekday remote assistance from the in-house engineering team for both software and hardware issues.
  4. Secure, Rapid Shipping - Aviation-grade flight case with triple-layer anti-vibration foam and shock/tilt indicators; priority DHL delivery in 3-5 days to major destinations.
  5. Flexible Payment Options - Accepts T/T, wire transfer, credit card.
  6. On-Site Inspection Welcome - Customers may visit the Shenzhen warehouse and refurbishment line to view calibration benches, burn-in racks, and inventory.
