Agilent 83651B RF Signal Generator 2 GHz – 50 GHz High Purity Synthesized Swept CW Generator

Agilent 83651B RF Signal Generator 2 GHz – 50 GHz High Purity Synthesized Swept CW Generator
Agilent 83651B RF Signal Generator 2 GHz – 50 GHz High Purity Synthesized Swept CW Generator Agilent 83651B RF Signal Generator 2 GHz – 50 GHz High Purity Synthesized Swept CW Generator Agilent 83651B RF Signal Generator 2 GHz – 50 GHz High Purity Synthesized Swept CW Generator

Large Image :  Agilent 83651B RF Signal Generator 2 GHz – 50 GHz High Purity Synthesized Swept CW Generator

Product Details:
Brand Name: Keysight/Agilent/HP
Model Number: HP/Agilent 83651B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Contact Now Chat Now

Agilent 83651B RF Signal Generator 2 GHz – 50 GHz High Purity Synthesized Swept CW Generator

Description
New / Used: Used Frequency Range: 2 GHz – 50 GHz
Frequency Resolution: 1 KHz (1 Hz With Option 008) SSB Phase Noise: ≈ –80 DBc/Hz @ 10 GHz, 10 KHz Offset (typical)
Calibrated Output Power: +10 DBm To –110 DBm With Option 1E1 Step Attenuator Harmonics: ≤ –50 DBc Below 26.5 GHz (typical)
Highlight:

rf signal generator 2 ghz

,

83651b rf generator

,

83651b rf signal generator

Agilent 83651B — 2 GHz – 50 GHz High-Purity Synthesized Swept-CW Generator RF Signal Generator
Attribute Value
New / Used Used
Frequency Range 2 GHz – 50 GHz
Frequency Resolution 1 kHz (1 Hz with Option 008)
SSB Phase Noise ≈ –80 dBc/Hz @ 10 GHz, 10 kHz offset (typical)
Calibrated Output Power +10 dBm to –110 dBm with Option 1E1 step attenuator
Harmonics ≤ –50 dBc below 26.5 GHz (typical)

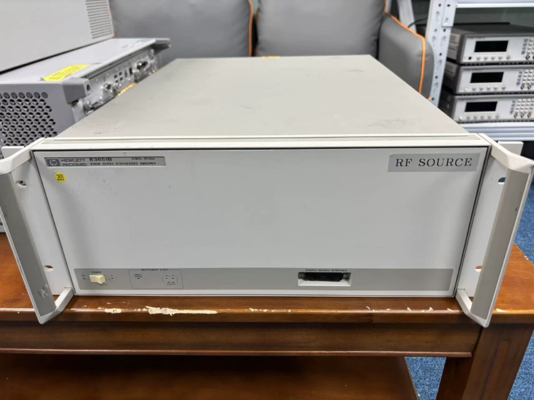

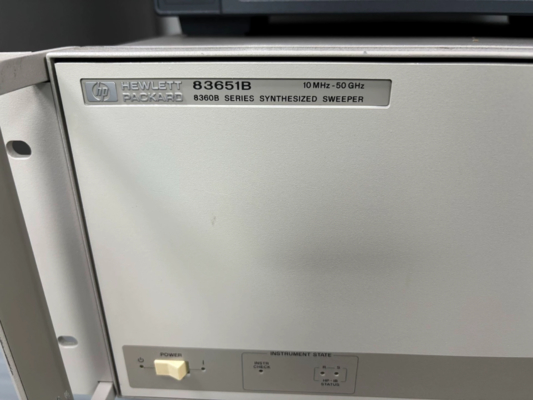

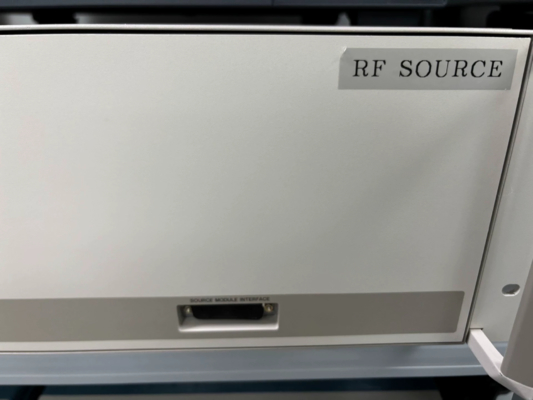

The pre-owned Agilent 83651B delivers fully synthesized accuracy and analog-sweep convenience from 2 GHz up to 50 GHz in a single 3-U chassis. One-kilohertz tuning --down to 1 Hz with the fractional-N option--makes it a crystal-clean local oscillator, while a typical -80 dBc/Hz phase-noise floor keeps mixer and phase-noise measurements honest. With the optional 110 dB electronic step attenuator, the source spans +10 dBm to -110 dBm, covering PA compression, receiver sensitivity, and EMC tasks without external pads.

Fast band switching, list sweeps, and SCPI/LAN automation let the generator drop straight into automated R &D or production benches, providing Keysight-grade signal purity and long-term serviceability at a fraction of new-unit cost.

Agilent 83651B RF Signal Generator 2 GHz – 50 GHz High Purity Synthesized Swept CW Generator 0
Contact TESTRO for a Fast Quote

Interested in an Agilent 83651B or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:
    • Send a tailored quotation and any current promotions.
    • Provide extra photos, test data, and full configuration details.
    • Discuss shipping, duties, warranty, and any other specifics you need.

Looking for other models? Our inventory changes daily--ask for the latest list of spectrum analyzers and RF equipment.


Agilent 83651B RF Signal Generator 2 GHz – 50 GHz High Purity Synthesized Swept CW Generator 1

TESTRO Advantages
  • Laboratory-Verified Performance - Every unit ships with an ISO/IEC 17025 calibration certificate (TESTRO Certified) tied to its serial number.
  • Full Internal Transparency - High-resolution teardown photos plus a live video test (gain-linearity, noise-floor, spurious response); recordings are stored for the product's lifetime.
  • Warranty & Technical Support - One-year warranty and weekday remote assistance from the in-house engineering team for both software and hardware issues.
  • Secure, Rapid Shipping - Aviation-grade flight case with triple-layer anti-vibration foam and shock/tilt indicators; priority DHL delivery in 3-5 days to major destinations.
  • Flexible Payment Options - Accepts T/T, wire transfer, credit card.
  • On-Site Inspection Welcome - Customers may visit the Shenzhen warehouse and refurbishment line to view calibration benches, burn-in racks, and inventory.
