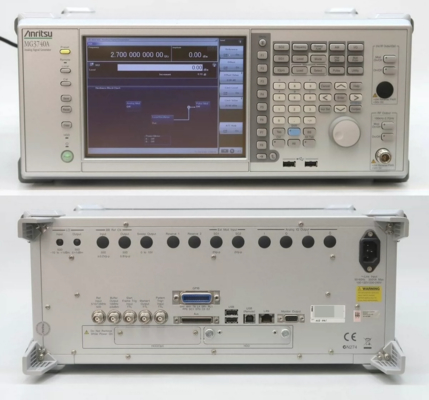

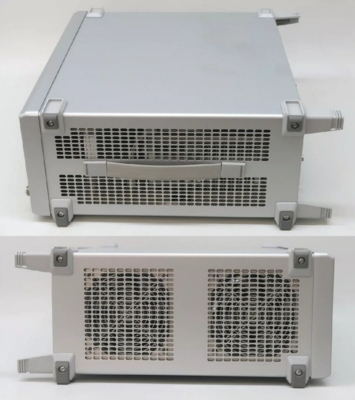

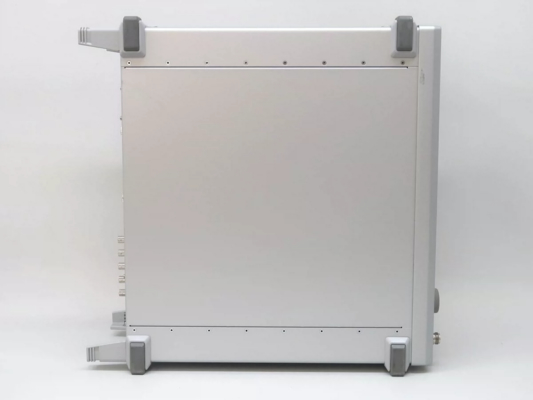

100 kHz–6 GHz Analog Signal Generator Anritsu MG3740A –140 dBc/Hz Phase Noise Fast 600 µs List Switching

100 kHz–6 GHz Analog Signal Generator Anritsu MG3740A –140 dBc/Hz Phase Noise Fast 600 µs List Switching
100 kHz–6 GHz Analog Signal Generator Anritsu MG3740A –140 dBc/Hz Phase Noise Fast 600 µs List Switching 100 kHz–6 GHz Analog Signal Generator Anritsu MG3740A –140 dBc/Hz Phase Noise Fast 600 µs List Switching 100 kHz–6 GHz Analog Signal Generator Anritsu MG3740A –140 dBc/Hz Phase Noise Fast 600 µs List Switching

Large Image :  100 kHz–6 GHz Analog Signal Generator Anritsu MG3740A –140 dBc/Hz Phase Noise Fast 600 µs List Switching

Product Details:
Brand Name: Anritsu
Model Number: MG3740A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Contact Now Chat Now

100 kHz–6 GHz Analog Signal Generator Anritsu MG3740A –140 dBc/Hz Phase Noise Fast 600 µs List Switching

Description
New / Used: Used SSB Phase Noise: ≤ –140 DBc/Hz Nominal @ 100 MHz, 20 KHz Offset; ≈ –131 DBc/Hz Typ. @ 1 GHz, 20 KHz
Output Level Range: –110 To +17 DBm Standard; –144 To +17 DBm With Low-level Option; Up To +23 DBm CW From 400 MHz–3 GHz With High-power Option. Switching Speed: <600 µs For Frequency/level In List/Scan Modes
Modulation & I/O: Built-in AM / FM / φM / Pulse; Optional Dual-RF Outputs For Wanted + Interferer; GPIB Control; OCXO (Opt. 001) Or Rubidium (Opt. 002) Reference Choices.
Highlight:

6 ghz analog signal generator

,

mg3740a analog signal generator

,

mg3740a signal generator analog

Anritsu MG3740A — 100 kHz–6 GHz Analog Signal Generator
–140 dBc/Hz Phase Noise, Fast 600 µs List Switching
Product Specifications
Attribute Value
New / Used Used
SSB Phase Noise ≤ –140 dBc/Hz nominal @ 100 MHz, 20 kHz offset; ≈ –131 dBc/Hz typ. @ 1 GHz, 20 kHz
Output Level Range –110 to +17 dBm standard; –144 to +17 dBm with low-level option; up to +23 dBm CW from 400 MHz–3 GHz with high-power option.
Switching Speed <600 µs for frequency/level in List/Scan modes
Modulation & I/O Built-in AM / FM / φM / Pulse; optional Dual-RF outputs for wanted + interferer; GPIB control; OCXO (Opt. 001) or Rubidium (Opt. 002) reference choices.
Product Description
The MG3740A is a high-purity analog signal generator for narrowband radio testing, offering wide 100 kHz -6 GHz coverage, very low phase noise (-140 dBc/Hz class), and sub-millisecond list switching to minimize tact time in production. Standard AM/FM/φM/pulse modulation supports receiver sensitivity and blocking tests, while optional Dual-RF outputs enable simultaneous wanted and interfering signals. Flexible level options span -144 dBm low-level generation to +23 dBm high power, and OCXO/Rb time-base options enhance frequency accuracy and stability. GPIB automation and user flatness correction streamline integration into ATE systems.
100 kHz–6 GHz Analog Signal Generator Anritsu MG3740A –140 dBc/Hz Phase Noise Fast 600 µs List Switching 0
Contact Us for a Fast Quote
Interested in an Anritsu MG3740A or a similar model?
  • Drop your WhatsApp number or e-mail on our website and we will:
    • Send a tailored quotation and any current promotions
    • Provide extra photos, test data, and full configuration details
    • Discuss shipping, duties, warranty, and any other specifics you need
Looking for other models? Our inventory changes daily—ask for the latest list of spectrum analyzers and RF equipment.

100 kHz–6 GHz Analog Signal Generator Anritsu MG3740A –140 dBc/Hz Phase Noise Fast 600 µs List Switching 1

Frequently Asked Questions (FAQ)
Performance Assurance
Every unit is calibrated at an ISO/IEC 17025 accredited laboratory. The original calibration certificate, marked TESTRO Certified, is linked to the unit's serial number and included in the shipment.
Integrity of Internal Components
  • A set of high-resolution teardown photographs showing seals, fasteners, and all critical modules
  • A live video session in which an engineer demonstrates gain-linearity, noise-floor, and spurious-response tests in real time
All recordings remain in our cloud archive for the life of the product.
Warranty & Technical Support
  • One-year transferable warranty
  • Our in-house engineering team is available on business days to provide remote software troubleshooting or hardware-assembly guidance
International Shipping Protection
  • Custom flight case built from aviation-grade plywood with triple-layer anti-vibration foam
  • Shock- and tilt-indicator labels on every crate
  • Preferred carrier: DHL, delivery in 3-5 days to major destinations
Payment Terms
We accept T/T, wire transfer, credit card.
On-Site Inspection
Customers are welcome to visit our Shenzhen warehouse and refurbishment line to inspect calibration benches, burn-in racks, and inventory.
