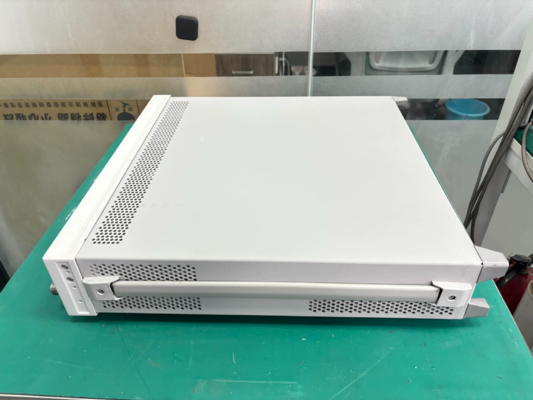

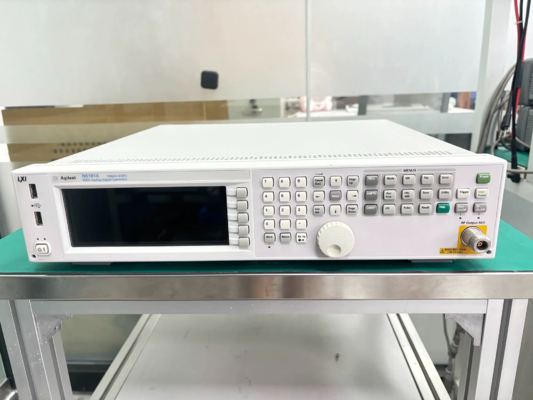

6 GHz MXG Analog Signal Generator High Power Agilent N5181A

New / Used: Used

SSB Phase Noise: ≤ –140 dBc/Hz nominal @ 100 MHz, 20 kHz offset; ≈ –131 dBc/Hz typ. @ 1 GHz, 20 kHz

Output Level Range: –110 to +17 dBm standard; –144 to +17 dBm with low-level option; up to +23 dBm CW from 400 MHz–3 GHz with high-power option.

Switching Speed: <600 µs for frequency/level in List/Scan modes

New / Used: Used

Frequency Range: 2 – 20 GHz base; 10 MHz – 2.2 GHz with Option 4 (DDC) or 10 MHz – 2 GHz with Option 5; 0.1 Hz – 10 MHz with Option 22 (DDS).

Leveled Output Power:: +13 dBm (≥2–20 GHz, standard); up to +19 dBm (≤10 GHz) and +17 dBm (>10–20 GHz) with Option 15 High Power; down to –120 dBm with step attenuator.

SSB Phase Noise @ 10 GHz (standard): –94 dBc/Hz @ 1 kHz, –102 dBc/Hz @ 10 kHz & 100 kHz, –125 dBc/Hz @ 1 MHz; Option 3 provides ultra-low phase noise.

New / Used: Used

Frequency Range: 2 GHz – 50 GHz

Frequency Resolution: 1 kHz (1 Hz with Option 008)

SSB Phase Noise: ≈ –80 dBc/Hz @ 10 GHz, 10 kHz offset (typical)

New / Used: Used

Frequency Range: 10 MHz – 20 GHz

Frequency Resolution: 1 kHz (1 Hz with Option 008)

SSB Phase Noise: –80 dBc/Hz @ 10 GHz, 10 kHz offset (typ.)

New / Used: Used

Frequency Range: 1 GHz – 20 GHz

Frequency Resolution: 1 kHz (1 Hz with Opt 1E8/008)

SSB Phase Noise: –80 dBc/Hz typ. @ 10 GHz, 10 kHz offset
