Agilent Signal Generator E4421B 2 GHz ESG-AP Analog / Vector Signal Generator

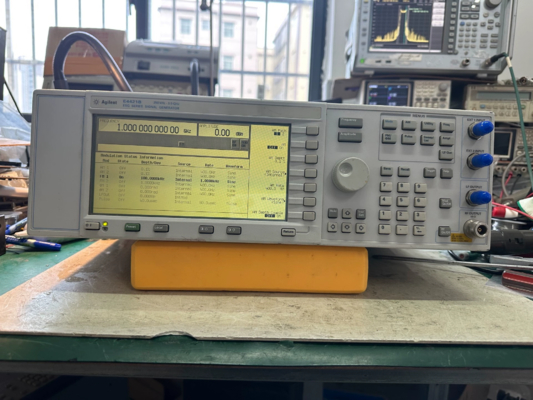

Large Image : Agilent Signal Generator E4421B 2 GHz ESG-AP Analog / Vector Signal Generator

Product Details:

Brand Name:	Keysight/Agilent/HP
Model Number:	Agilent E4421B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	3-5 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram

Contact Now Chat Now

Agilent Signal Generator E4421B 2 GHz ESG-AP Analog / Vector Signal Generator

Description

New / Used:	Used	Frequency Range:	250 KHz – 2 GHz
Calibrated Output Power:	+13 DBm To –136 DBm With Option 1E1 Step Attenuator	SSB Phase Noise:	–126 DBc/Hz (typ.) @ 1 GHz, 20 KHz Offset
Analog Modulation:	AM, FM, φM Up To 1 MHz Deviation; Pulse To 50 KHz Rate	Vector/I-Q Modulation:	30 MHz RF Bandwidth With Option UND/UNU (external I-Q Or Internal Baseband)
Highlight:	agilent signal generator E4421B , Vector Signal Generator E4421B , ESG-AP Vector Signal Generator

Agilent E4421B — 2 GHz ESG-AP Analog/Vector Signal Generator RF Signal Generator

Product Specifications

New / Used	Used
Frequency Range	250 kHz – 2 GHz
Calibrated Output Power	+13 dBm to –136 dBm with Option 1E1 step attenuator
SSB Phase Noise	–126 dBc/Hz (typ.) @ 1 GHz, 20 kHz offset
Analog Modulation	AM, FM, φM up to 1 MHz deviation; Pulse to 50 kHz rate
Vector/I-Q Modulation	30 MHz RF bandwidth with Option UND/UNU (external I-Q or internal baseband)

Product Overview

The pre-owned Agilent E4421B ESG-AP delivers fully synthesized accuracy from 250 kHz to 2 GHz while offering both high-purity CW and complex analog or vector modulation in a single 3-U chassis. A typical -126 dBc/Hz phase-noise floor keeps mixer and receiver tests honest, and the optional 110 dB step attenuator provides a calibrated +13 dBm to -136 dBm span for PA compression or sensitivity work.

Built-in AM/FM/PM plus optional 30 MHz I-Q bandwidth support GSM, Bluetooth and narrow-band IoT waveforms, while LAN/GPIB SCPI control lets the generator slip straight into automated benches.

Refurbished units ship ISO-17025-calibrated with current firmware, trimming capital cost and lead-time yet preserving Keysight reliability and upgrade paths.

Interested in an Agilent E4421B -- 2 GHz ESG-AP Analog/Vector Signal Generator or a similar model?

Drop your WhatsApp number or e-mail on our website and we will:
Send a tailored quotation and any current promotions
Provide extra photos, test data, and full configuration details
Discuss shipping, duties, warranty, and any other specifics you need

Looking for other models? Our inventory changes daily--ask for the latest list of spectrum analyzers and RF equipment.

Why Choose TESTRO?

Laboratory-Verified Performance: Every unit ships with an ISO/IEC 17025 calibration certificate bearing the TESTRO Certified seal, so you know the specifications are not just claimed--they're proven.
Total Transparency: High-resolution teardown photos and a live video test session let you inspect seals, modules, and real-time performance metrics before you pay.
Real Warranty, Real People: One-year machine warranty, with our engineering team standing by on business days to provide remote assistance for any software or hardware issues.
Global Delivery, Built-In Protection: DHL lanes--arriving at most destinations in just 3-5 days.
Flexible, Modern Payments: Choose traditional T/T or wire transfer, credit card.
Open-Door Assurance: Visit our Shenzhen facility, walk the refurbishment line, and see your equipment on the bench before it leaves our dock.
