10 MHz – 26.5 GHz RF Signal Generator High Purity Synthesized Swept-CW Generator Agilent 83630B

10 MHz – 26.5 GHz RF Signal Generator High Purity Synthesized Swept-CW Generator Agilent 83630B
10 MHz – 26.5 GHz RF Signal Generator High Purity Synthesized Swept-CW Generator Agilent 83630B 10 MHz – 26.5 GHz RF Signal Generator High Purity Synthesized Swept-CW Generator Agilent 83630B 10 MHz – 26.5 GHz RF Signal Generator High Purity Synthesized Swept-CW Generator Agilent 83630B

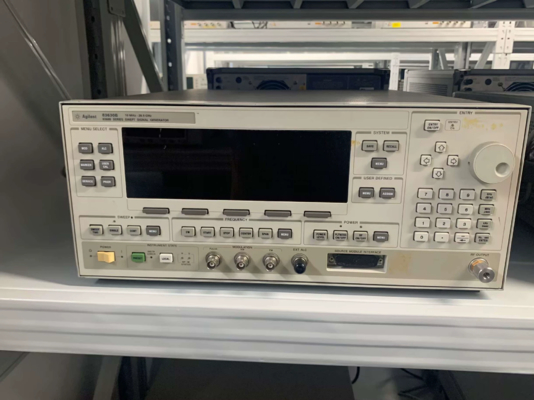

Large Image :  10 MHz – 26.5 GHz RF Signal Generator High Purity Synthesized Swept-CW Generator Agilent 83630B

Product Details:
Brand Name: Keysight/Agilent/HP
Model Number: Agilent 83630B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Contact Now Chat Now

10 MHz – 26.5 GHz RF Signal Generator High Purity Synthesized Swept-CW Generator Agilent 83630B

Description
New / Used: Used Frequency Range: 10 MHz – 26.5 GHz
Frequency Resolution: 1 KHz Standard (1 Hz With Option 008 Fractional-N Synthesizer) SSB Phase Noise: ≈ –80 DBc/Hz @ 10 GHz, 10 KHz Offset (typical)
Calibrated Output Power: +13 DBm To –110 DBm With Option 001 Step Attenuator Harmonics: ≤ –50 DBc Below 20 GHz (typical)
Highlight:

rf signal generator high purity

,

10 mhz rf generator

,

10 mhz rf signal generator

Agilent 83630B — 10 MHz – 26.5 GHz High-Purity Synthesized Swept-CW Generator RF Signal Generator
Attribute Value
New / Used Used
Frequency Range 10 MHz – 26.5 GHz
Frequency Resolution 1 kHz standard (1 Hz with Option 008 fractional-N synthesizer)
SSB Phase Noise ≈ –80 dBc/Hz @ 10 GHz, 10 kHz offset (typical)
Calibrated Output Power +13 dBm to –110 dBm with Option 001 step attenuator
Harmonics ≤ –50 dBc below 20 GHz (typical)

The refurbished Agilent 83630B combines the spectral purity of a fully synthesized source with the convenience of analog sweep, spanning 10 MHz to 26.5 GHz in a single 3-U chassis. One-kilohertz frequency steps—or 1 Hz with the fractional-N Option 008—let you substitute crystal-clean LOs or execute scalar-network sweeps with millihertz-level accuracy, while -80 dBc/Hz phase-noise performance keeps mixer measurements honest. Add the Option 001 step attenuator and you gain a calibrated +13 dBm to -110 dBm power range for PA compression, receiver sensitivity and EMC immunity tasks; harmonics sit at least 50 dB below the carrier to minimize spurious responses.

Fast band-to-band switching, full SCPI/LAN automation and ISO-17025 calibration mean the 83630B drops straight into production lines or R&D benches—delivering Keysight-grade purity and long-term serviceability at a fraction of new-unit cost.

10 MHz – 26.5 GHz RF Signal Generator High Purity Synthesized Swept-CW Generator Agilent 83630B 0
Contact TESTRO for a Fast Quote

Interested in an Agilent 83630B — 10 MHz - 26.5 GHz High-Purity Synthesized Swept-CW Generator or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:
    • Send a tailored quotation and any current promotions
    • Provide extra photos, test data, and full configuration details
    • Discuss shipping, duties, warranty, and any other specifics you need
Looking for other models? Our inventory changes daily—ask for the latest list of spectrum analyzers and RF equipment.

10 MHz – 26.5 GHz RF Signal Generator High Purity Synthesized Swept-CW Generator Agilent 83630B 1

TESTRO Advantages
Laboratory-Verified Performance

Every unit ships with an ISO/IEC 17025 calibration certificate (TESTRO Certified) tied to its serial number.

Full Internal Transparency

High-resolution teardown photos plus a live video test (gain-linearity, noise-floor, spurious response); recordings are stored for the product's lifetime.

Warranty & Technical Support

One-year warranty and weekday remote assistance from the in-house engineering team for both software and hardware issues.

Secure, Rapid Shipping

Aviation-grade flight case with triple-layer anti-vibration foam and shock/tilt indicators; priority DHL delivery in 3-5 days to major destinations.

Flexible Payment Options

Accepts T/T, wire transfer, credit card.

On-Site Inspection Welcome

Customers may visit the Shenzhen warehouse and refurbishment line to view calibration benches, burn-in racks, and inventory.
