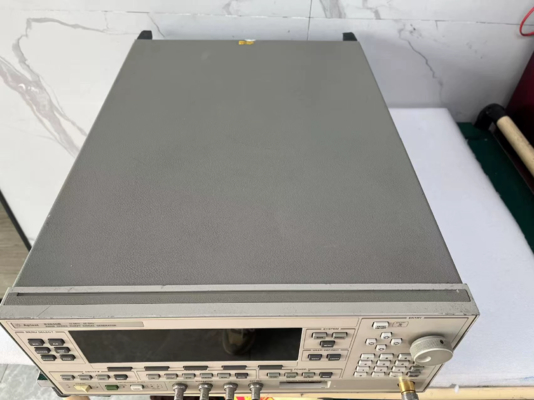

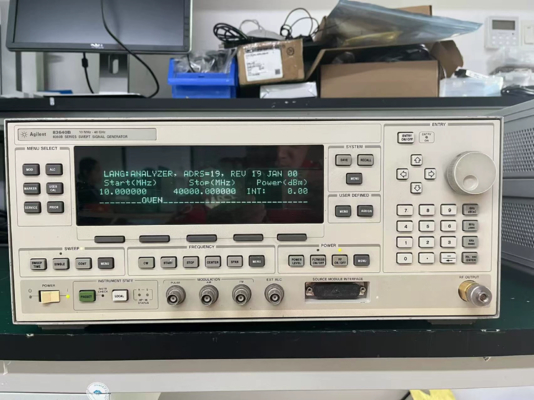

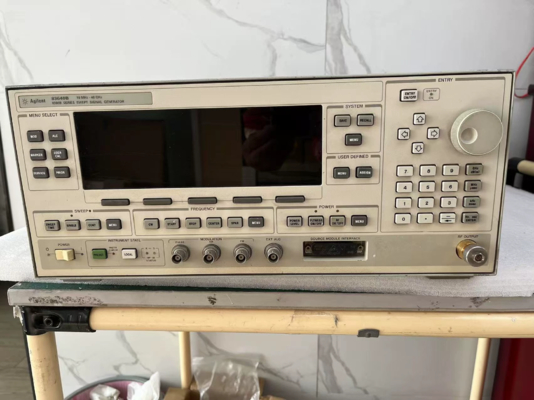

10 MHz -40 GHz High Purity Low Cost Rf Signal Generator Agilent 83640B

10 MHz -40 GHz High Purity Low Cost Rf Signal Generator Agilent 83640B
10 MHz -40 GHz High Purity Low Cost Rf Signal Generator Agilent 83640B 10 MHz -40 GHz High Purity Low Cost Rf Signal Generator Agilent 83640B 10 MHz -40 GHz High Purity Low Cost Rf Signal Generator Agilent 83640B

Large Image :  10 MHz -40 GHz High Purity Low Cost Rf Signal Generator Agilent 83640B

Product Details:
Brand Name: Keysight/Agilent/HP
Model Number: Agilent 83640B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Contact Now Chat Now

10 MHz -40 GHz High Purity Low Cost Rf Signal Generator Agilent 83640B

Description
New / Used: Used Frequency Range: 10 MHz – 40 GHz
Frequency Resolution: 1 KHz (1 Hz With Option 008) SSB Phase Noise: ≈ –80 DBc/Hz @ 10 GHz, 10 KHz Offset (typical)
Calibrated Output Power: +10 DBm To –110 DBm With Step Attenuator (Option 001) Harmonics: ≤ –50 DBc Below 26.5 GHz (typical)
Highlight:

high purity low cost rf signal generator

,

83640b rf vector signal generator

,

83640b low cost rf signal generator

Agilent 83640B — 10 MHz – 40 GHz High-Purity Synthesized Swept-CW Generator RF Signal Generator
Product Specifications
Attribute Value
New / Used Used
Frequency Range 10 MHz – 40 GHz
Frequency Resolution 1 kHz (1 Hz with Option 008)
SSB Phase Noise ≈ –80 dBc/Hz @ 10 GHz, 10 kHz offset (typical)
Calibrated Output Power +10 dBm to –110 dBm with step attenuator (Option 001)
Harmonics ≤ –50 dBc below 26.5 GHz (typical)
Product Description

The pre-owned Agilent 83640B delivers fully-synthesized accuracy together with analog-sweep convenience, spanning 10 MHz to 40 GHz in a single 3-U chassis. One-kilohertz tuning steps—or 1 Hz with Option 008—allow precise LO substitution and scalar network-analysis sweeps, while -80 dBc/Hz phase-noise performance keeps mixer and phase-noise measurements honest.

With the optional step attenuator, a calibrated +10 dBm to -110 dBm power range covers PA compression, receiver sensitivity and EMC immunity tasks, and harmonics sit at least 50 dB below the carrier below 26.5 GHz to minimize unwanted products.

Fast band-to-band switching, SCPI/LAN automation and ISO-17025 calibration let the generator drop straight into production lines or R&D benches—delivering Keysight-grade signal purity and long-term serviceability at a fraction of new-instrument cost.

10 MHz -40 GHz High Purity Low Cost Rf Signal Generator Agilent 83640B 0
Contact Us for a Fast Quote

Interested in an Agilent 83640B or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:
    • Send a tailored quotation and any current promotions
    • Provide extra photos, test data, and full configuration details
    • Discuss shipping, duties, warranty, and any other specifics you need
Looking for other models? Our inventory changes daily—ask for the latest list of spectrum analyzers and RF equipment.

10 MHz -40 GHz High Purity Low Cost Rf Signal Generator Agilent 83640B 1

Why Choose TESTRO?
  1. Laboratory-Verified Performance
    Every unit ships with an ISO/IEC 17025 calibration certificate bearing the TESTRO Certified seal, so you know the specifications are not just claimed—they're proven.
  2. Total Transparency
    High-resolution teardown photos and a live video test session let you inspect seals, modules, and real-time performance metrics before you pay.
  3. Real Warranty, Real People
    One-year machine warranty, with our engineering team standing by on business days to provide remote assistance for any software or hardware issues.
  4. Global Delivery, Built-In Protection
    DHL lanes—arriving at most destinations in just 3-5 days.
  5. Flexible, Modern Payments
    Choose traditional T/T or wire transfer, credit card.
  6. Open-Door Assurance
    Visit our Shenzhen facility, walk the refurbishment line, and see your equipment on the bench before it leaves our dock.
