Rohde & Schwarz R&S SMU200A 6 GHz Dual Path Vector Signal Generator

Rohde & Schwarz R&S SMU200A 6 GHz Dual Path Vector Signal Generator
Rohde & Schwarz R&S SMU200A 6 GHz Dual Path Vector Signal Generator Rohde & Schwarz R&S SMU200A 6 GHz Dual Path Vector Signal Generator Rohde & Schwarz R&S SMU200A 6 GHz Dual Path Vector Signal Generator

Large Image :  Rohde & Schwarz R&S SMU200A 6 GHz Dual Path Vector Signal Generator

Product Details:
Brand Name: Rohde & Schwarz
Model Number: R&S SMU200A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Western Union,T/T
Contact Now Chat Now

Rohde & Schwarz R&S SMU200A 6 GHz Dual Path Vector Signal Generator

Description
New / Used: Used Frequency Range: 100 KHz – 6 GHz (Path A With Option B106; Path B To 3 GHz)
RF Output Level: –145 DBm To +13 DBm, 0.1 DB Resolution Baseband I/Q Modulation Bandwidth: 120 MHz Internal (Option B71); 528 MHz External Via ARB Streaming
Phase Noise: ≈ –134 DBc/Hz @ 20 KHz Offset (1 GHz Carrier, Typ.) Modulation Options: GSM/EDGE, WCDMA/HSPA, LTE FDD/TDD, 5G-NR (F-OFDM), 802.11 A/b/g/n/ac, Bluetooth® EDR, Custom ARB Waveforms
Highlight:

r&s exg signal generator

,

r&s vector signal generator

,

smu200a exg signal generator

Rohde & Schwarz R&S SMU200A — 6 GHz Dual-Path Vector Signal Generator RF Signal Generator
Product Specifications
Attribute Value
New / Used Used
Frequency Range 100 kHz – 6 GHz (Path A with Option B106; Path B to 3 GHz)
RF Output Level –145 dBm to +13 dBm, 0.1 dB resolution
Baseband I/Q Modulation Bandwidth 120 MHz internal (Option B71); 528 MHz external via ARB streaming
Phase Noise ≈ –134 dBc/Hz @ 20 kHz offset (1 GHz carrier, typ.)
Modulation Options GSM/EDGE, WCDMA/HSPA, LTE FDD/TDD, 5G-NR (F-OFDM), 802.11 a/b/g/n/ac, Bluetooth® EDR, custom ARB waveforms
Product Description

The pre-owned Rohde & Schwarz SMU200A combines two fully independent RF paths and dual 120 MHz baseband generators in one chassis, enabling multi-standard MIMO, blocker and fading scenarios from 100 kHz up to 6 GHz without external combiners.

A wide -145 dBm to +13 dBm output span, sub-134 dBc/Hz phase-noise floor and < 0.5 % EVM safeguard strict ACPR and sensitivity tests, while real-time additive AWGN and fading options replicate demanding over-the-air conditions. Touch-driven GUI, SCPI/LAN/GPIB automation and hot-swappable waveform memory streamline production and R&D tasks alike.

Supplied fully tested, freshly calibrated and firmware-current, each SMU200A ships from stock --delivering Rohde & Schwarz signal purity, flexibility and long-term serviceability at a fraction of new-instrument cost.

Rohde & Schwarz R&S SMU200A 6 GHz Dual Path Vector Signal Generator 0
Contact TESTRO for a Fast Quote

Interested in Rohde & Schwarz R&S SMU200A or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:
    • Send a tailored quotation and any current promotions.
    • Provide extra photos, test data, and full configuration details.
    • Discuss shipping, duties, warranty, and any other specifics you need.
Looking for other models? Our inventory changes daily--ask for the latest list of spectrum analyzers and RF equipment.

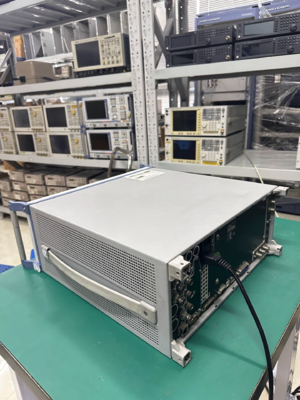

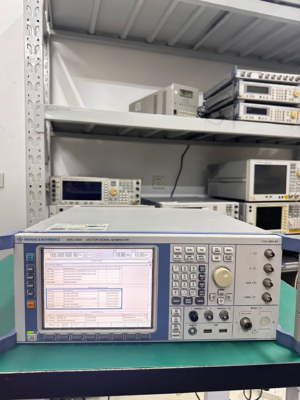

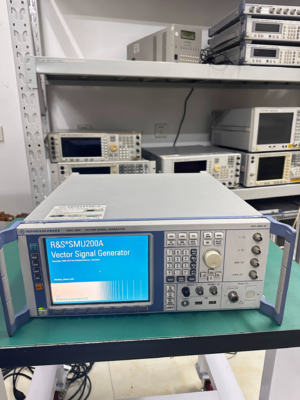

Rohde & Schwarz R&S SMU200A 6 GHz Dual Path Vector Signal Generator 1 Rohde & Schwarz R&S SMU200A 6 GHz Dual Path Vector Signal Generator 2 Rohde & Schwarz R&S SMU200A 6 GHz Dual Path Vector Signal Generator 3

TESTRO Advantages
  1. Laboratory-Verified Performance - Every unit ships with an ISO/IEC 17025 calibration certificate (TESTRO Certified) tied to its serial number.
  2. Full Internal Transparency - High-resolution teardown photos plus a live video test (gain-linearity, noise-floor, spurious response); recordings are stored for the product's lifetime.
  3. Warranty & Technical Support - One-year warranty and weekday remote assistance from the in-house engineering team for both software and hardware issues.
  4. Secure, Rapid Shipping - Aviation-grade flight case with triple-layer anti-vibration foam and shock/tilt indicators; priority DHL delivery in 3-5 days to major destinations.
  5. Flexible Payment Options - Accepts T/T, wire transfer, credit card.
  6. On-Site Inspection Welcome - Customers may visit the Shenzhen warehouse and refurbishment line to view calibration benches, burn-in racks, and inventory.
