35 V / 6 A 200 W Programmable DC Power Supply Agilent 6653A

35 V / 6 A 200 W Programmable DC Power Supply Agilent 6653A
35 V / 6 A 200 W Programmable DC Power Supply Agilent 6653A 35 V / 6 A 200 W Programmable DC Power Supply Agilent 6653A

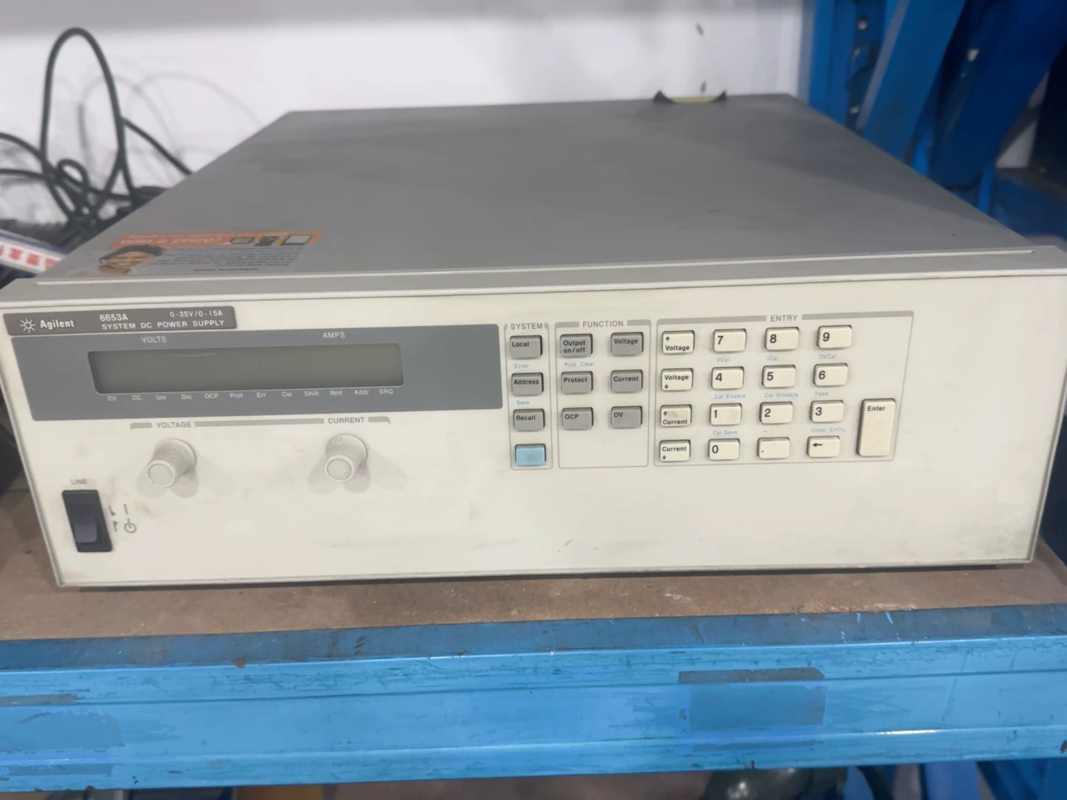

Large Image :  35 V / 6 A 200 W Programmable DC Power Supply Agilent 6653A

Product Details:
Brand Name: Keysight/Agilent/HP
Model Number: Agilent 6653A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Contact Now Chat Now

35 V / 6 A 200 W Programmable DC Power Supply Agilent 6653A

Description
New / Used: Used Output Voltage Range: 0 – 35 V (CV)
Output Current Range: 0 – 6 A (CC) Maximum Output Power: 200 W (autoranging)
Programming Accuracy (25 °C): Voltage ± 0.05 % + 6 MV ; Current ± 0.05 % + 2 MA Ripple & Noise (20 Hz–20 MHz): < 3 MV Rms / < 20 MV P-p
Remote Control & Features:: GPIB (SCPI Compliant), Analog Programming, Remote Sense, Over-voltage/over-current Protection, Fast 10 Ms Command Processing
Highlight:

200 w programmable dc power supply

,

6653a dual dc power supply

,

6653a programmable dc power supply

Agilent 6653A — 35 V / 6 A 200 W Programmable DC Power Supply
Attribute Value
New / Used Used
Output Voltage Range 0 – 35 V (CV)
Output Current Range 0 – 6 A (CC)
Maximum Output Power 200 W (autoranging)
Programming Accuracy (25 °C) Voltage ± 0.05 % + 6 mV ; Current ± 0.05 % + 2 mA
Ripple & Noise (20 Hz–20 MHz) < 3 mV rms / < 20 mV p-p
Remote Control & Features: GPIB (SCPI compliant), analog programming, remote sense, over-voltage/over-current protection, fast 10 ms command processing
Product Description

The pre-owned Agilent 6653A delivers up to 35 volts at 6 amps --200 watts of clean, tightly regulated DC--from a compact ½-rack chassis. Fast CV/CC mode switching, millivolt-level programming resolution and < 3 mV ripple make it well-suited for precision analog, RF-biased or automotive electronics work, while GPIB/analog control and SCPI commands slot straight into automated ATE racks. Remote-sense terminals cancel lead losses; built-in OVP/OCP safeguards prototypes. Refurbished units ship ISO-17025-calibrated with a fresh fan and latest firmware, trimming capital cost and lead-time yet preserving Keysight reliability, long-term serviceability and full manual / driver support.

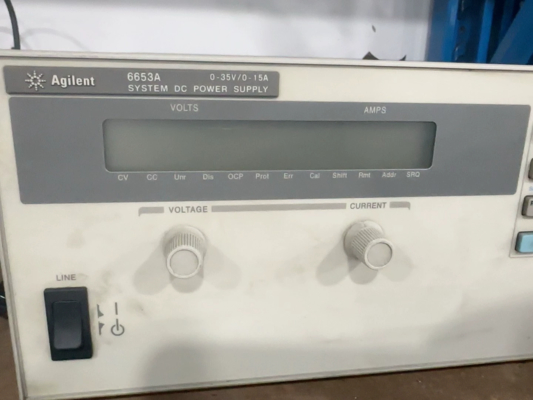

35 V / 6 A 200 W Programmable DC Power Supply Agilent 6653A 0
Contact Us for a Fast Quote

Interested in an Agilent 6653A -- 35 V / 6 A 200 W Programmable DC Power Supply or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:
    • Send a tailored quotation and any current promotions.
    • Provide extra photos, test data, and full configuration details.
    • Discuss shipping, duties, warranty, and any other specifics you need.
Looking for other models? Our inventory changes daily--ask for the latest list of spectrum analyzers and RF equipment.

35 V / 6 A 200 W Programmable DC Power Supply Agilent 6653A 1

Frequently Asked Questions (FAQ)
1/ Performance Assurance

Every unit is calibrated at an ISO/IEC 17025 accredited laboratory. The original calibration certificate, marked TESTRO Certified, is linked to the unit's serial number and included in the shipment.

2/ Integrity of Internal Components
  • A set of high-resolution teardown photographs showing seals, fasteners, and all critical modules.
  • A live video session in which an engineer demonstrates gain-linearity, noise-floor, and spurious-response tests in real time. All recordings remain in our cloud archive for the life of the product.
3/ Warranty & Technical Support
  • One-year transferable warranty.
  • Our in-house engineering team is available on business days to provide remote software troubleshooting or hardware-assembly guidance.
4/ International Shipping Protection
  • Custom flight case built from aviation-grade plywood with triple-layer anti-vibration foam.
  • Shock- and tilt-indicator labels on every crate.
  • Preferred carrier: DHL, delivery in 3-5 days to major destinations.
5/ Payment Terms

We accept T/T, wire transfer, credit card.

6/ On-Site Inspection

Customers are welcome to visit our Shenzhen warehouse and refurbishment line to inspect calibration benches, burn-in racks, and inventory.
