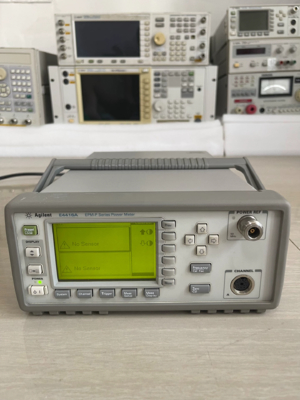

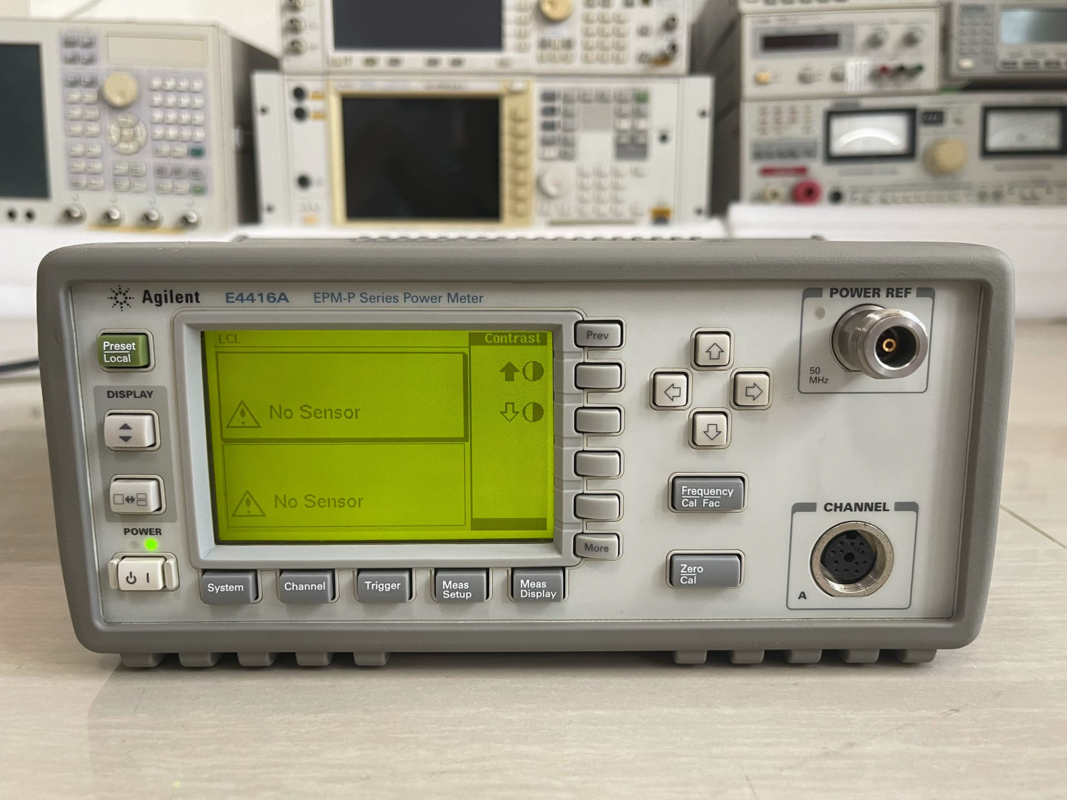

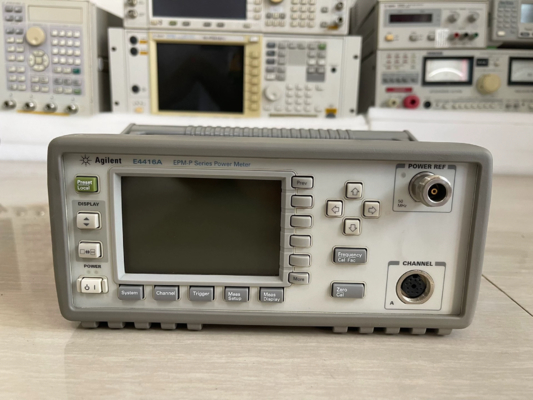

110 GHz Peak-&-Average Single Channel RF Power Meter Agilent E4416A

Large Image : 110 GHz Peak-&-Average Single Channel RF Power Meter Agilent E4416A

Product Details:

Brand Name:	Keysight/Agilent/HP
Model Number:	Agilent E4416A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	3-5 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram

Contact Now Chat Now

110 GHz Peak-&-Average Single Channel RF Power Meter Agilent E4416A

Description

New / Used:	Used	Frequency Range:	9 KHz – 110 GHz (sensor Dependent)
Power Measurement Range:	–70 DBm To +44 DBm (8480/E-series Sensors)	Measurement Speed:	Up To 1,000 Corrected Readings/s Over GPIB; 20 Msample/s Internal Sampling
Dynamic Measurement Modes:	Simultaneous Peak, Average & Peak-to-average Ratio; Time-gated Power	Remote Interfaces:	GPIB, RS-232/422, SCPI-compatible For Automation
Highlight:	single channel rf power meter , peak-&-average rf power meter , peak-&-average microwave power meter

Agilent E4416A — 110 GHz Peak-&-Average Single-Channel Power Meter RF Power Meter

Attribute	Value
New / Used	Used
Frequency Range	9 kHz – 110 GHz (sensor dependent)
Power Measurement Range	–70 dBm to +44 dBm (8480/E-series sensors)
Measurement Speed	up to 1,000 corrected readings/s over GPIB; 20 Msample/s internal sampling
Dynamic Measurement Modes	simultaneous peak, average & peak-to-average ratio; time-gated power
Remote Interfaces	GPIB, RS-232/422, SCPI-compatible for automation

The refurbished Agilent E4416A condenses a microwave counter-class time base, 20 Msample/s digitiser and sensor interface into a 2-U chassis that reads peak, average and time-gated RF power from 9 kHz to 110 GHz with a wide -70 dBm to +44 dBm span. Up to 1,000 corrected readings per second speed production tests, while fast 1.3 µs rise-time sampling (with E932xA sensors) captures TDMA, WLAN or radar bursts without an oscilloscope.

Built-in OCXO stability, eight preset wireless configurations and GPIB/RS-232 control make the meter drop straight into automated benches; ISO-17025-calibrated reconditioned units cut capital cost and lead-time yet retain Keysight reliability and long-term sensor compatibility.

Interested in an Keysight/Agilent E4416A or a similar model?

Drop your WhatsApp number or e-mail on our website and we will:
- Send a tailored quotation and any current promotions.
- Provide extra photos, test data, and full configuration details.
- Discuss shipping, duties, warranty, and any other specifics you need.

Looking for other models? Our inventory changes daily--ask for the latest list of spectrum analyzers and RF equipment.

Why Choose TESTRO?

1. Laboratory-Verified Performance

Every unit ships with an ISO/IEC 17025 calibration certificate bearing the TESTRO Certified seal, so you know the specifications are not just claimed--they're proven.

2. Total Transparency

High-resolution teardown photos and a live video test session let you inspect seals, modules, and real-time performance metrics before you pay.

3. Real Warranty, Real People

One-year machine warranty, with our engineering team standing by on business days to provide remote assistance for any software or hardware issues.

4. Global Delivery, Built-In Protection

DHL lanes--arriving at most destinations in just 3-5 days.

5. Flexible, Modern Payments

Choose traditional T/T or wire transfer, credit card.

6. Open-Door Assurance

Visit our Shenzhen facility, walk the refurbishment line, and see your equipment on the bench before it leaves our dock.
