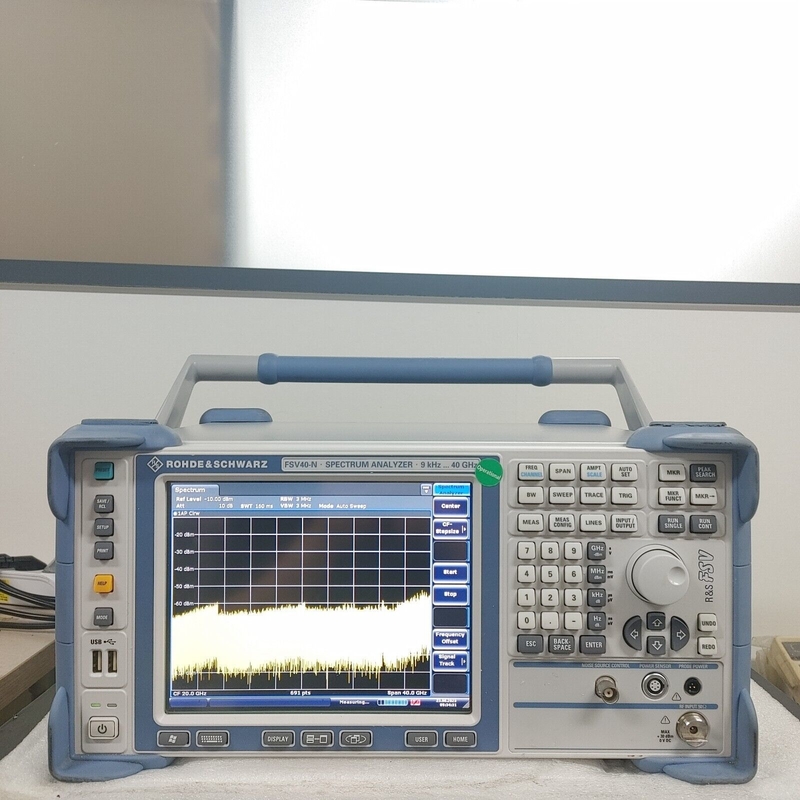

Used Wide Band Signal Spectrum Analyzer 40 GHz Rohde & Schwarz FSV40

Used Wide Band Signal Spectrum Analyzer 40 GHz Rohde & Schwarz FSV40
Used Wide Band Signal Spectrum Analyzer 40 GHz Rohde & Schwarz FSV40 Used Wide Band Signal Spectrum Analyzer 40 GHz Rohde & Schwarz FSV40

Large Image :  Used Wide Band Signal Spectrum Analyzer 40 GHz Rohde & Schwarz FSV40

Product Details:
Brand Name: Rohde & Schwarz R&S
Model Number: FSV40
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Contact Now Chat Now

Used Wide Band Signal Spectrum Analyzer 40 GHz Rohde & Schwarz FSV40

Description
New / Used: Used Analysis Bandwidth: Up To 160 MHz With Option FSV-B160 (≤ 7 GHz) • Phase Noise: ≈ –106 DBc/Hz @ 10 KHz Offset (500 MHz Carrier)
Phase Noise: ≈ –106 DBc/Hz @ 10 KHz Offset (500 MHz Carrier) DANL: –154 DBm/Hz (1 Hz RBW, < 1 GHz, Pre-amp On)
Interfaces / Options: USB, LAN, GPIB; Tracking Generator B9, 20 DB Pre-amp B22, LO/IF Ports B21 For External Mixers
Highlight:

wide band signal spectrum analyzer

,

signal spectrum analyzer 40 ghz

,

fsv40 signal hound spectrum analyzer

Rohde & Schwarz FSV40 — 40 GHz Wide-Band Signal Spectrum Analyzer
Product Specifications
Condition Used
Analysis Bandwidth up to 160 MHz with option FSV-B160 (≤ 7 GHz)
Phase Noise ≈ –106 dBc/Hz @ 10 kHz offset (500 MHz carrier)
DANL –154 dBm/Hz (1 Hz RBW, < 1 GHz, pre-amp on)
Interfaces / Options USB, LAN, GPIB; tracking generator B9, 20 dB pre-amp B22, LO/IF ports B21 for external mixers
Product Overview

The pre-owned R&S FSV40 extends fundamental-mixing spectrum and vector-signal analysis from 10 Hz to 40 GHz, eliminating the need for external harmonic mixers when verifying Ku- and Ka-band hardware.

With its optional 160 MHz capture bandwidth, this analyzer supports wide-channel WLAN, LTE and radar tests below 7 GHz. Its exceptional -106 dBc/Hz phase-noise floor and pre-amp-assisted -154 dBm sensitivity reveal faint spurs that could impact stringent EVM and ACLR limits. Field-installable options including tracking-generator, pre-amplifier and LO/IF ports add flexibility for scalar-network analysis and external converter applications.

Each unit is supplied fully tested, freshly calibrated with current firmware, delivering proven Rohde & Schwarz precision with LAN/GPIB automation at a fraction of new-instrument cost.

Used Wide Band Signal Spectrum Analyzer 40 GHz Rohde & Schwarz FSV40 0 Used Wide Band Signal Spectrum Analyzer 40 GHz Rohde & Schwarz FSV40 1 Used Wide Band Signal Spectrum Analyzer 40 GHz Rohde & Schwarz FSV40 2 Used Wide Band Signal Spectrum Analyzer 40 GHz Rohde & Schwarz FSV40 3
Contact Us for a Fast Quote

Interested in the Rohde & Schwarz FSV40 — 40 GHz Wide-Band Signal Spectrum Analyzer or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:
  • Send a tailored quotation and any current promotions
  • Provide extra photos, test data, and full configuration details
  • Discuss shipping, duties, warranty, and any other specifics you need

Looking for other models? Our inventory changes daily—ask for the latest list of spectrum analyzers and RF equipment.


Frequently Asked Questions
Performance Assurance

Every unit is calibrated at an ISO/IEC 17025 accredited laboratory. The original calibration certificate, marked TESTRO Certified, is linked to the unit's serial number and included in the shipment.

Integrity of Internal Components
  • A set of high-resolution teardown photographs showing seals, fasteners, and all critical modules
  • A live video session demonstrating gain-linearity, noise-floor, and spurious-response tests in real time

All recordings remain in our cloud archive for the life of the product.

Warranty & Technical Support
  • One-year transferable warranty
  • In-house engineering team available on business days for remote software troubleshooting or hardware-assembly guidance
International Shipping Protection
  • Custom flight case built from aviation-grade plywood with triple-layer anti-vibration foam
  • Shock- and tilt-indicator labels on every crate
  • Preferred carrier: DHL, delivery in 3-5 days to major destinations
Payment Terms

We accept T/T, wire transfer, and credit card payments.

On-Site Inspection

Customers are welcome to visit our Shenzhen warehouse and refurbishment line to inspect calibration benches, burn-in racks, and inventory.
