Advantest U3751 8 GHz Lightweight RF Spectrum Analyzer CBW 100 Hz – 30 MHz

Advantest U3751 8 GHz Lightweight RF Spectrum Analyzer CBW 100 Hz – 30 MHz
Advantest U3751 8 GHz Lightweight RF Spectrum Analyzer CBW 100 Hz – 30 MHz Advantest U3751 8 GHz Lightweight RF Spectrum Analyzer CBW 100 Hz – 30 MHz Advantest U3751 8 GHz Lightweight RF Spectrum Analyzer CBW 100 Hz – 30 MHz Advantest U3751 8 GHz Lightweight RF Spectrum Analyzer CBW 100 Hz – 30 MHz

Large Image :  Advantest U3751 8 GHz Lightweight RF Spectrum Analyzer CBW 100 Hz – 30 MHz

Product Details:
Brand Name: Advantest
Model Number: U3751
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Contact Now Chat Now

Advantest U3751 8 GHz Lightweight RF Spectrum Analyzer CBW 100 Hz – 30 MHz

Description
New / Used: Used Frequency Range: 9 KHz – 8 GHz
Level Accuracy: ±0.8 DB (10 MHz – 3 GHz); ±1.0 DB (3 – 8 GHz) Analysis Bandwidth (CBW): 100 Hz – 30 MHz Standard / 40 MHz Wide-band Mode
DANL (Preamp On): –155 DBm/Hz @ 1 GHz With Built-in Pre-amp Tracking Generator (opt. 77): 100 KHz – 6 GHz, 0 To –30 DBm Output
Highlight:

8 GHz RF spectrum analyzer

,

lightweight RF spectrum analyzer

,

Advantest U3751 spectrum analyzer 8 GHz

Advantest U3751 — 8 GHz Lightweight RF Spectrum Analyzer
Product Specifications
Attribute Value
New / Used Used
Frequency Range 9 kHz – 8 GHz
Level Accuracy ±0.8 dB (10 MHz – 3 GHz); ±1.0 dB (3 – 8 GHz)
Analysis Bandwidth (CBW) 100 Hz – 30 MHz standard / 40 MHz wide-band mode
DANL (Preamp On) –155 dBm/Hz @ 1 GHz with built-in pre-amp
Tracking Generator (opt. 77) 100 kHz – 6 GHz, 0 to –30 dBm output
Product Overview

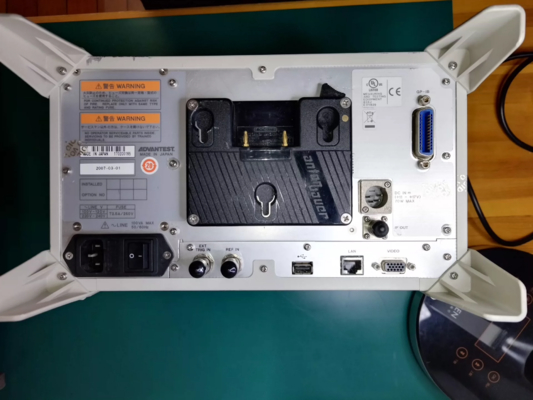

Offered pre-owned and freshly calibrated, the U3751 brings laboratory-class spectrum analysis to the field with 9 kHz-to-8 GHz coverage, a built-in wideband pre-amplifier and an ultra-low -155 dBm/Hz noise floor. A 100 Hz-30 MHz digital IF path (40 MHz option) speeds ACPR, OBW and spur checks, while ±0.8 dB amplitude accuracy ensures reliable production data. Two-second boot-up, USB/LAN/GPIB control and an optional 6 GHz tracking generator make the 5.6 kg unit ideal for bench, rack or rooftop work. Supplied ready-to-ship with current firmware and traceable certs, it delivers Advantest precision at a fraction of new-instrument cost.
Advantest U3751 8 GHz Lightweight RF Spectrum Analyzer CBW 100 Hz – 30 MHz 0
Contact Us for a Fast Quote

Interested in an Advantest U3751 -- 8 GHz Lightweight Spectrum Analyzer or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:
    • Send a tailored quotation and any current promotions
    • Provide extra photos, test data, and full configuration details
    • Discuss shipping, duties, warranty, and any other specifics you need
Looking for other models? Our inventory changes daily--ask for the latest list of spectrum analyzers and RF equipment.

Advantest U3751 8 GHz Lightweight RF Spectrum Analyzer CBW 100 Hz – 30 MHz 1

Frequently Asked Questions
1/ Performance Assurance

Every unit is calibrated at an ISO/IEC 17025 accredited laboratory. The original calibration certificate, marked TESTRO Certified, is linked to the unit's serial number and included in the shipment.

2/ Integrity of Internal Components
  • A set of high-resolution teardown photographs showing seals, fasteners, and all critical modules
  • A live video session in which an engineer demonstrates gain-linearity, noise-floor, and spurious-response tests in real time. All recordings remain in our cloud archive for the life of the product
3/ Warranty & Technical Support
  • One-year transferable warranty
  • Our in-house engineering team is available on business days to provide remote software troubleshooting or hardware-assembly guidance
4/ International Shipping Protection
  • Custom flight case built from aviation-grade plywood with triple-layer anti-vibration foam
  • Shock- and tilt-indicator labels on every crate
  • Preferred carrier: DHL, delivery in 3-5 days to major destinations
5/ Payment Terms

We accept T/T, wire transfer, credit card.

6/ On-Site Inspection

Customers are welcome to visit our Shenzhen warehouse and refurbishment line to inspect calibration benches, burn-in racks, and inventory.
