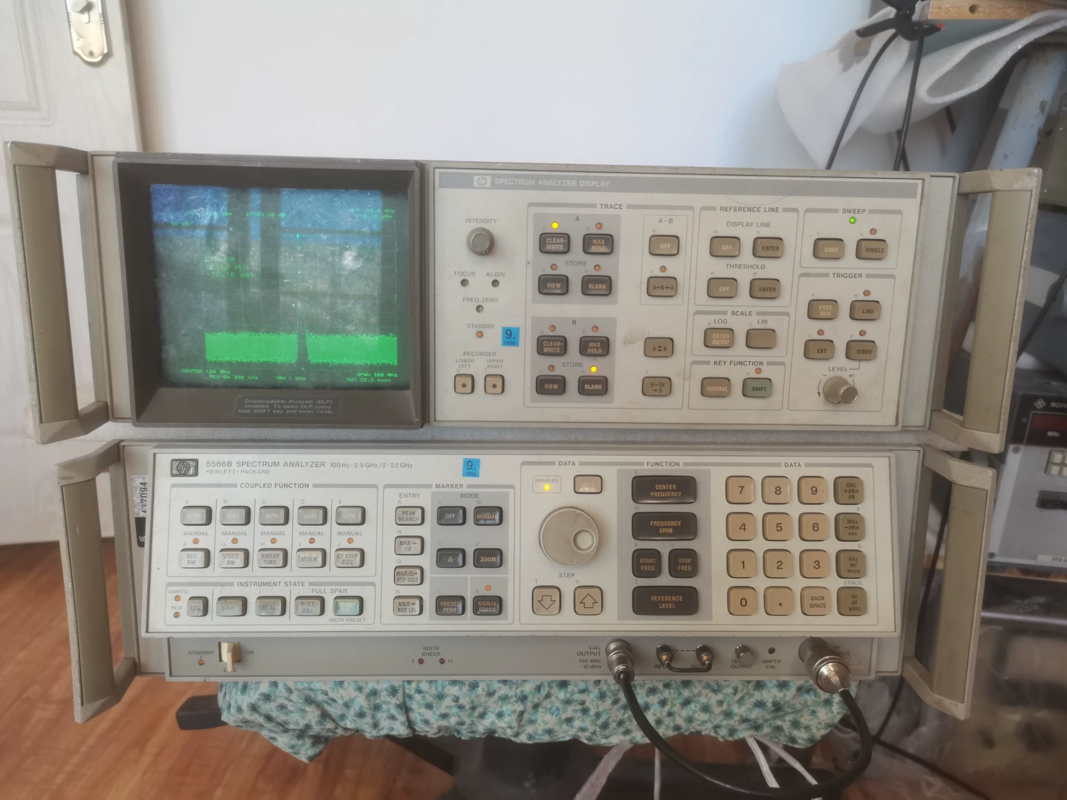

100 Hz–22 GHz Microwave RF Spectrum Analyzer HP Agilent 8566B

100 Hz–22 GHz Microwave RF Spectrum Analyzer HP Agilent 8566B
100 Hz–22 GHz Microwave RF Spectrum Analyzer HP Agilent 8566B 100 Hz–22 GHz Microwave RF Spectrum Analyzer HP Agilent 8566B 100 Hz–22 GHz Microwave RF Spectrum Analyzer HP Agilent 8566B

Large Image :  100 Hz–22 GHz Microwave RF Spectrum Analyzer HP Agilent 8566B

Product Details:
Brand Name: Keysight/Agilent/HP
Model Number: 8566B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Contact Now Chat Now

100 Hz–22 GHz Microwave RF Spectrum Analyzer HP Agilent 8566B

Description
New / Used: Used Frequency Range: 100 Hz – 22 GHz (extendable To 325 GHz With External Mixers)
Analysis Bandwidth: 10 Hz – 3 MHz, 1/3/10 Sequence (digitally Selected) Phase Noise: –90 DBc/Hz @ 10 KHz Offset, 1 GHz Carrier (typical)
DANL (Preamp On): –134 DBm (1 MHz–2.5 GHz, 1 Hz RBW, 0 DB Attn, Typical) Size / Weight: 50 Kg Total (RF Section + IF Display)
Highlight:

22 GHz microwave spectrum analyzer

,

Microwave RF Spectrum Analyzer

,

RF hp 8566b spectrum analyzer

HP Agilent 8566B — 100 Hz–22 GHz Microwave RF Spectrum Analyzer
Attribute Value
New / Used Used
Frequency Range 100 Hz – 22 GHz (extendable to 325 GHz with external mixers)
Analysis Bandwidth 10 Hz – 3 MHz, 1/3/10 sequence (digitally selected)
Phase Noise –90 dBc/Hz @ 10 kHz offset, 1 GHz carrier (typical)
DANL (Preamp On) –134 dBm (1 MHz–2.5 GHz, 1 Hz RBW, 0 dB attn, typical)
Size / Weight 50 kg total (RF section + IF display)
Product Description

This pre-owned Agilent 8566B delivers laboratory-grade spectrum analysis from 100 Hz up to 22 GHz, with synthesized tuning and resolution bandwidths down to 10 Hz for precise close-in spur work. Typical phase-noise performance of -90 dBc/Hz at 10 kHz offset and a -134 dBm noise floor in the 1 MHz-2.5 GHz band reveal low-level signals without external LNAs, while external harmonic or preselected mixers push coverage to 325 GHz for millimetre-wave tasks.

Although the two-chassis system weighs about 50 kg, buyers gain exceptional dynamic range, SCPI automation, and upgradeable option slots at a fraction of new-instrument cost. Units can ship quickly with fresh ISO-17025 calibration and verified firmware, combining classic Agilent precision with reduced CAPEX and lead-time.

100 Hz–22 GHz Microwave RF Spectrum Analyzer HP Agilent 8566B 0
Contact Us for a Fast Quote

Interested in an HP Agilent 8566B -- 100 Hz-22 GHz Microwave RF Spectrum Analyzer or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:
    • Send a tailored quotation and any current promotions
    • Provide extra photos, test data, and full configuration details
    • Discuss shipping, duties, warranty, and any other specifics you need
Looking for other models? Our inventory changes daily--ask for the latest list of spectrum analyzers and RF equipment.
100 Hz–22 GHz Microwave RF Spectrum Analyzer HP Agilent 8566B 1
100 Hz–22 GHz Microwave RF Spectrum Analyzer HP Agilent 8566B 2

Frequently Asked Questions (FAQ)
1/ Performance Assurance

Every unit is calibrated at an ISO/IEC 17025 accredited laboratory. The original calibration certificate, marked TESTRO Certified, is linked to the unit's serial number and included in the shipment.

2/ Integrity of Internal Components
  • A set of high-resolution teardown photographs showing seals, fasteners, and all critical modules
  • A live video session in which an engineer demonstrates gain-linearity, noise-floor, and spurious-response tests in real time

All recordings remain in our cloud archive for the life of the product.

3/ Warranty & Technical Support
  • One-year transferable warranty
  • Our in-house engineering team is available on business days to provide remote software troubleshooting or hardware-assembly guidance
4/ International Shipping Protection
  • Custom flight case built from aviation-grade plywood with triple-layer anti-vibration foam
  • Shock- and tilt-indicator labels on every crate
  • Preferred carrier: DHL, delivery in 3-5 days to major destinations
5/ Payment Terms

We accept T/T, wire transfer, credit card.

6/ On-Site Inspection

Customers are welcome to visit our Shenzhen warehouse and refurbishment line to inspect calibration benches, burn-in racks, and inventory.
