Agilent 8565EC 50 GHz Color Portable RF Spectrum Analyzer

Large Image : Agilent 8565EC 50 GHz Color Portable RF Spectrum Analyzer

Product Details:

Brand Name:	Keysight/Agilent/HP
Model Number:	Agilent 8565EC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	3-5 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram

Contact Now Chat Now

Agilent 8565EC 50 GHz Color Portable RF Spectrum Analyzer

Description

New / Used:	Used	Frequency Range:	30 Hz – 50 GHz (internal Mixing; Preselected Above 2.75 GHz)
Analysis Bandwidth:	1 Hz – 1 MHz In 1/3/10 Steps; 2 MHz/3 MHz (–6 DB)	Phase Noise:	≤ –113 DBc/Hz @ 10 KHz Offset, 1 GHz Carrier (typical)
DANL (Preamp On):	≤ –151 DBm/Hz (10 MHz – 2.9 GHz, 1 Hz RBW, 0 DB Attn)	Size / Weight:	337 × 187 × 461 Mm, 17.3 Kg (nominal)
Highlight:	color portable rf spectrum analyzer , agilent portable spectrum analyzer , agilent portable rf spectrum analyzer

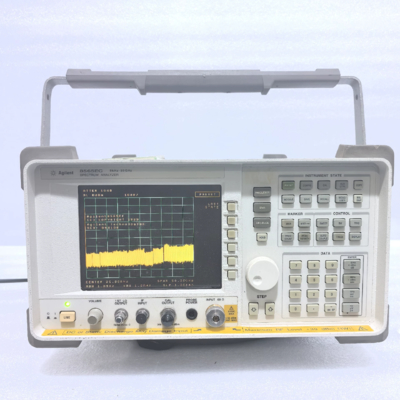

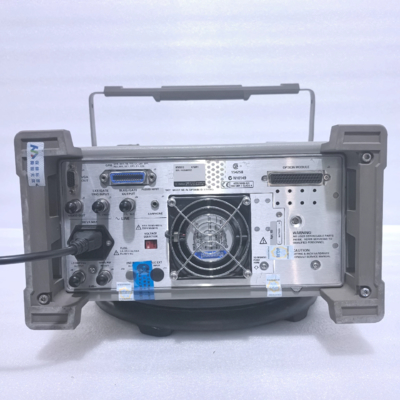

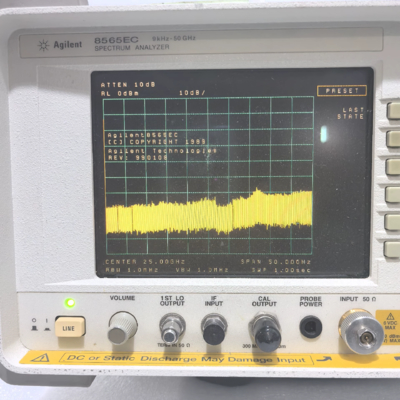

Agilent 8565EC — 50 GHz Color Portable RF Spectrum Analyzer

Product Specifications

Condition	Used
Frequency Range	30 Hz – 50 GHz (internal mixing; preselected above 2.75 GHz)
Analysis Bandwidth	1 Hz – 1 MHz in 1/3/10 steps; 2 MHz/3 MHz (–6 dB)
Phase Noise	≤ –113 dBc/Hz @ 10 kHz offset, 1 GHz carrier (typical)
DANL (Preamp On)	≤ –151 dBm/Hz (10 MHz – 2.9 GHz, 1 Hz RBW, 0 dB attn)
Dimensions & Weight	337 × 187 × 461 mm, 17.3 kg (nominal)

Product Description

The pre-owned Agilent 8565EC delivers laboratory-grade performance in a MIL-rugged 4-U portable chassis with a bright color display. Featuring continuous synthesized tuning from 30 Hz to 50 GHz and fully digital 1 Hz RBWs, this analyzer enables engineers to resolve narrow-band spurs and millimeter-wave harmonics with exceptional clarity.

With phase noise ≤ -113 dBc/Hz and noise level ≤ -151 dBm/Hz, the unit reveals weak emissions without requiring external LNAs. Four option slots allow for field upgrades with tracking generators, ultra-narrow RBWs, or EMI personalities, ensuring long-term value and adaptability.

Purchasing refurbished significantly reduces capital expense and lead time. Units are available with ISO-17025 calibration and verified firmware, maintaining Agilent accuracy, SCPI compatibility, and serviceability at a fraction of the cost of new instruments.

Contact TESTRO for a Fast Quote

Interested in an Agilent 8565EC -- 50 GHz Color Portable RF Spectrum Analyzer or a similar model?

Drop your WhatsApp number or e-mail on our website and we will:
Send a tailored quotation and any current promotions
Provide extra photos, test data, and full configuration details
Discuss shipping, duties, warranty, and any other specifics you need

Looking for other models? Our inventory changes daily—ask for the latest list of spectrum analyzers and RF equipment.

TESTRO Advantages

Laboratory-Verified Performance - Every unit ships with an ISO/IEC 17025 calibration certificate (TESTRO Certified) tied to its serial number.

Full Internal Transparency - High-resolution teardown photos plus a live video test (gain-linearity, noise-floor, spurious response); recordings are stored for the product's lifetime.

Warranty & Technical Support - One-year warranty and weekday remote assistance from the in-house engineering team for both software and hardware issues.

Secure, Rapid Shipping - Aviation-grade flight case with triple-layer anti-vibration foam and shock/tilt indicators; priority DHL delivery in 3-5 days to major destinations.

Flexible Payment Options - Accepts T/T, wire transfer, credit card.

On-Site Inspection Welcome - Customers may visit the Shenzhen warehouse and refurbishment line to view calibration benches, burn-in racks, and inventory.
