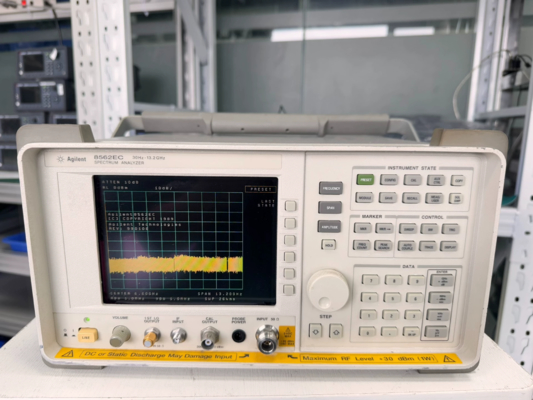

HP Agilent 8562EC Color Portable RF Spectrum Analyzer 13.2 GHz

HP Agilent 8562EC Color Portable RF Spectrum Analyzer 13.2 GHz
HP Agilent 8562EC Color Portable RF Spectrum Analyzer 13.2 GHz HP Agilent 8562EC Color Portable RF Spectrum Analyzer 13.2 GHz HP Agilent 8562EC Color Portable RF Spectrum Analyzer 13.2 GHz

Large Image :  HP Agilent 8562EC Color Portable RF Spectrum Analyzer 13.2 GHz

Product Details:
Brand Name: Keysight/Agilent/HP
Model Number: 8562EC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Contact Now Chat Now

HP Agilent 8562EC Color Portable RF Spectrum Analyzer 13.2 GHz

Description
New / Used: Used Frequency Range: 30 Hz – 13.2 GHz (to 26.5 GHz With Opt H26)
Analysis Bandwidth: 1 Hz – 3 MHz Digital (1, 3, 10 Sequence) Phase Noise: < –113 DBc/Hz @ 10 KHz Offset (1 GHz Carrier)
DANL (Preamp On): –151 DBm/Hz Typical @ 1 GHz, 1 Hz RBW Size / Weight: 337 × 187 × 461 Mm, 16.5 Kg
Highlight:

color portable rf spectrum analyzer

,

portable rf spectrum analyzer 13.2 ghz

,

agilent portable spectrum analyzer

HP Agilent 8562EC — 13.2 GHz Color Portable RF Spectrum Analyzer
Product Specifications
Attribute Value
New / Used Used
Frequency Range 30 Hz – 13.2 GHz (to 26.5 GHz with Opt H26)
Analysis Bandwidth 1 Hz – 3 MHz digital (1, 3, 10 sequence)
Phase Noise < –113 dBc/Hz @ 10 kHz offset (1 GHz carrier)
DANL (Preamp On) –151 dBm/Hz typical @ 1 GHz, 1 Hz RBW
Size / Weight 337 × 187 × 461 mm, 16.5 kg
Product Overview

The pre-owned Agilent 8562EC delivers microwave-grade spectrum analysis from 30 Hz to 13.2 GHz in a MIL-rugged 4-U chassis with a crisp color display. Its fully digital 1 Hz -3 MHz RBWs and < -113 dBc/Hz phase-noise floor resolve closely spaced spurs, while a -151 dBm/Hz DANL exposes weak emissions without extra preamps. Four option slots keep tracking generators and time-gated or EMI personalities field-upgradeable, prolonging service life.

Buying refurbished trims capital spend and lead-time; units ship ISO-17025-calibrated with verified firmware, so you gain Agilent accuracy, SCPI compatibility, and parts support at a fraction of new-instrument cost.

HP Agilent 8562EC Color Portable RF Spectrum Analyzer 13.2 GHz 0 HP Agilent 8562EC Color Portable RF Spectrum Analyzer 13.2 GHz 1 HP Agilent 8562EC Color Portable RF Spectrum Analyzer 13.2 GHz 2 HP Agilent 8562EC Color Portable RF Spectrum Analyzer 13.2 GHz 3

HP Agilent 8562EC Color Portable RF Spectrum Analyzer 13.2 GHz 4
Contact Us for a Fast Quote

Interested in HP Agilent 8562EC -- 13.2 GHz Color Portable RF Spectrum Analyzer or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:
    • Send a tailored quotation and any current promotions
    • Provide extra photos, test data, and full configuration details
    • Discuss shipping, duties, warranty, and any other specifics you need
Looking for other models? Our inventory changes daily--ask for the latest list of spectrum analyzers and RF equipment.

Frequently Asked Questions
1/ Performance Assurance

Every unit is calibrated at an ISO/IEC 17025 accredited laboratory. The original calibration certificate, marked TESTRO Certified, is linked to the unit's serial number and included in the shipment.

2/ Integrity of Internal Components
  • A set of high-resolution teardown photographs showing seals, fasteners, and all critical modules
  • A live video session in which an engineer demonstrates gain-linearity, noise-floor, and spurious-response tests in real time. All recordings remain in our cloud archive for the life of the product
3/ Warranty & Technical Support
  • One-year transferable warranty
  • Our in-house engineering team is available on business days to provide remote software troubleshooting or hardware-assembly guidance
4/ International Shipping Protection
  • Custom flight case built from aviation-grade plywood with triple-layer anti-vibration foam
  • Shock- and tilt-indicator labels on every crate
  • Preferred carrier: DHL, delivery in 3-5 days to major destinations
5/ Payment Terms

We accept T/T, wire transfer, credit card.

6/ On-Site Inspection

Customers are welcome to visit our Shenzhen warehouse and refurbishment line to inspect calibration benches, burn-in racks, and inventory.
