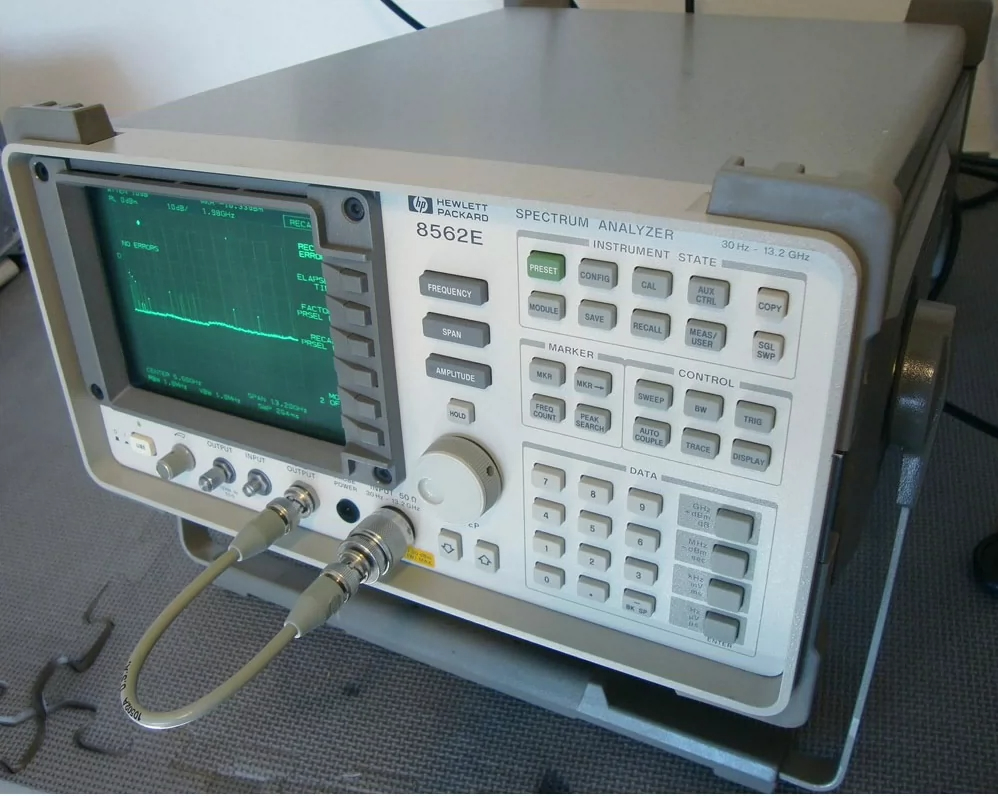

HP Agilent 8562E Portable RF Spectrum Analyzer 13.2 GHz Spectrum Analyzer

HP Agilent 8562E Portable RF Spectrum Analyzer 13.2 GHz Spectrum Analyzer
HP Agilent 8562E Portable RF Spectrum Analyzer 13.2 GHz Spectrum Analyzer HP Agilent 8562E Portable RF Spectrum Analyzer 13.2 GHz Spectrum Analyzer HP Agilent 8562E Portable RF Spectrum Analyzer 13.2 GHz Spectrum Analyzer

Large Image :  HP Agilent 8562E Portable RF Spectrum Analyzer 13.2 GHz Spectrum Analyzer

Product Details:
Brand Name: Keysight/Agilent/HP
Model Number: HP/Agilent 8562E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Contact Now Chat Now

HP Agilent 8562E Portable RF Spectrum Analyzer 13.2 GHz Spectrum Analyzer

Description
New / Used: Used Frequency Range: 30 Hz – 13.2 GHz (extends To 26.5 GHz With Opt H26)
Analysis Bandwidth: 1 Hz – 1 MHz Standard; 10 Hz – 1 MHz With Opt 103 Phase Noise: ≤ –113 DBc/Hz @ 10 KHz Offset (1 GHz Carrier, Typical)
DANL (Preamp On): ≤ –151 DBm (10 MHz – 2.9 GHz, 1 Hz RBW, 0 DB Attn) Size / Weight: 389 × 201 × 434 Mm, 8.2 Kg
Highlight:

RF Spectrum Analyzer 8562E

,

13.2 GHz Spectrum Analyzer

,

8562E agilent technologies spectrum analyzer

HP Agilent 8562E — 13.2 GHz Portable RF Spectrum Analyzer
Attribute Value
New / Used Used
Frequency Range 30 Hz – 13.2 GHz (extends to 26.5 GHz with Opt H26)
Analysis Bandwidth 1 Hz – 1 MHz standard; 10 Hz – 1 MHz with Opt 103
Phase Noise ≤ –113 dBc/Hz @ 10 kHz offset (1 GHz carrier, typical)
DANL (Preamp On) ≤ –151 dBm (10 MHz – 2.9 GHz, 1 Hz RBW, 0 dB attn)
Size / Weight 389 × 201 × 434 mm, 8.2 kg

A pre-owned Agilent 8562E brings microwave-grade spectrum analysis from 30 Hz to 13.2 GHz to the field bench in a rugged 4-U chassis.

Digitally implemented 1 Hz -1 MHz RBWs and a low -113 dBc/Hz phase-noise floor let engineers resolve adjacent carriers and spurs, while a DANL down to -151 dBm exposes low-level emissions without an external LNA. Four option slots support tracking generators, narrow-band RBWs, and time-gated measurements, extending service life.

Buying refurbished slashes CAPEX and lead-time; units can ship with fresh ISO-17025 calibration and the latest verified firmware, preserving Agilent reliability and full SCPI compatibility at a fraction of new-instrument cost.

HP Agilent 8562E Portable RF Spectrum Analyzer 13.2 GHz Spectrum Analyzer 0
Contact TESTRO for a Fast Quote

Interested in HP Agilent 8562E -- 13.2 GHz Portable RF Spectrum Analyzer or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:
    • Send a tailored quotation and any current promotions.
    • Provide extra photos, test data, and full configuration details.
    • Discuss shipping, duties, warranty, and any other specifics you need.
Looking for other models? Our inventory changes daily--ask for the latest list of spectrum analyzers and RF equipment.

HP Agilent 8562E Portable RF Spectrum Analyzer 13.2 GHz Spectrum Analyzer 1 HP Agilent 8562E Portable RF Spectrum Analyzer 13.2 GHz Spectrum Analyzer 2 HP Agilent 8562E Portable RF Spectrum Analyzer 13.2 GHz Spectrum Analyzer 3

TESTRO Advantages
  1. Laboratory-Verified Performance - Every unit ships with an ISO/IEC 17025 calibration certificate (TESTRO Certified) tied to its serial number.
  2. Full Internal Transparency - High-resolution teardown photos plus a live video test (gain-linearity, noise-floor, spurious response); recordings are stored for the product's lifetime.
  3. Warranty & Technical Support - One-year warranty and weekday remote assistance from the in-house engineering team for both software and hardware issues.
  4. Secure, Rapid Shipping - Aviation-grade flight case with triple-layer anti-vibration foam and shock/tilt indicators; priority DHL delivery in 3-5 days to major destinations.
  5. Flexible Payment Options - Accepts T/T, wire transfer, credit card.
  6. On-Site Inspection Welcome - Customers may visit the Shenzhen warehouse and refurbishment line to view calibration benches, burn-in racks, and inventory.
