9 kHz–2.9 GHz DVB-C QAM RF Spectrum Analyzer HP Agilent 8594Q

9 kHz–2.9 GHz DVB-C QAM RF Spectrum Analyzer HP Agilent 8594Q
9 kHz–2.9 GHz DVB-C QAM RF Spectrum Analyzer HP Agilent 8594Q 9 kHz–2.9 GHz DVB-C QAM RF Spectrum Analyzer HP Agilent 8594Q

Large Image :  9 kHz–2.9 GHz DVB-C QAM RF Spectrum Analyzer HP Agilent 8594Q

Product Details:
Brand Name: Keysight/Agilent/HP
Model Number: HP Agilent 8594Q
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Contact Now Chat Now

9 kHz–2.9 GHz DVB-C QAM RF Spectrum Analyzer HP Agilent 8594Q

Description
New / Used: Used Frequency Range: 9 KHz – 2.9 GHz
Supported Channel Bandwidths: 2 MHz, 4 MHz, 8 MHz (6 MHz With Option J91) Resolution Bandwidth: 1 KHz – 1 MHz (narrow-RBW Option)
DANL (Preamp On): –135 DBm Typical (Displayed Average Noise Level) Size / Weight: 325 × 163 × 427 Mm, 16.4 Kg (36 Lb)
Highlight:

DVB-C QAM RF Spectrum Analyzer

,

RF Spectrum Analyzer HP Agilent 8594Q

,

2.9 GHz RF Spectrum Analyzer

HP Agilent 8594Q — 9 kHz–2.9 GHz DVB-C QAM RF Spectrum Analyzer
Product Specifications
Attribute Value
New / Used Used
Frequency Range 9 kHz – 2.9 GHz
Supported Channel Bandwidths 2 MHz, 4 MHz, 8 MHz (6 MHz with Option J91)
Resolution Bandwidth 1 kHz – 1 MHz (narrow-RBW option)
DANL (Preamp On) –135 dBm typical (Displayed Average Noise Level)
Size / Weight 325 × 163 × 427 mm, 16.4 kg (36 lb)
Product Description

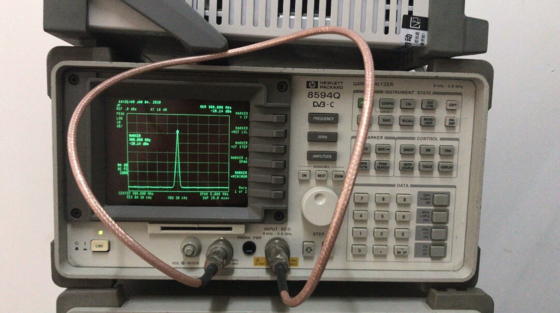

This pre-owned Agilent 8594Q is purpose-built for CATV and DVB-C maintenance, combining a 9 kHz -2.9 GHz spectrum analyzer with on-board 16/64/256-QAM demodulation. Native support for 2, 4 and 8 MHz channel bandwidths (plus 6 MHz with option J91) and a -135 dBm noise floor let technicians verify carrier flatness, MER and constellation quality without external gear.

The rugged 4-slot chassis remains fully option-upgradeable, while purchasing refurbished trims capital budgets and lead-time; instruments ship with fresh ISO-17025 calibration and verified firmware, delivering Agilent accuracy for field service or head-end QA at a fraction of new cost.

9 kHz–2.9 GHz DVB-C QAM RF Spectrum Analyzer HP Agilent 8594Q 0
Contact TESTRO for a Fast Quote

Interested in an Agilent 8594Q -- 9 kHz-2.9 GHz DVB-C QAM Spectrum Analyzer or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:
    • Send a tailored quotation and any current promotions
    • Provide extra photos, test data, and full configuration details
    • Discuss shipping, duties, warranty, and any other specifics you need
Looking for other models? Our inventory changes daily--ask for the latest list of spectrum analyzers and RF equipment.

9 kHz–2.9 GHz DVB-C QAM RF Spectrum Analyzer HP Agilent 8594Q 1

TESTRO Advantages
Laboratory-Verified Performance - Every unit ships with an ISO/IEC 17025 calibration certificate (TESTRO Certified) tied to its serial number.
Full Internal Transparency - High-resolution teardown photos plus a live video test (gain-linearity, noise-floor, spurious response); recordings are stored for the product's lifetime.
Warranty & Technical Support - One-year warranty and weekday remote assistance from the in-house engineering team for both software and hardware issues.
Secure, Rapid Shipping - Aviation-grade flight case with triple-layer anti-vibration foam and shock/tilt indicators; priority DHL delivery in 3-5 days to major destinations.
Flexible Payment Options - Accepts T/T, wire transfer, credit card.
On-Site Inspection Welcome - Customers may visit the Shenzhen warehouse and refurbishment line to view calibration benches, burn-in racks, and inventory.
