Rohde & Schwarz R&F NRP18T — 18 GHz High-Accuracy Thermal RF Power Sensor
Product Specifications
| Attribute |
Value |
| New / Used |
Used |
| Frequency Range |
10 MHz – 18 GHz |
| Dynamic Range |
–35 dBm to +20 dBm (55 dB) |
| Power Measurement Uncertainty |
±0.04 dB (18 °C – 28 °C, typ.) |
| Measurement Speed |
up to 500 readings / s (buffer mode) |
| Interfaces |
USB 2.0 & LAN (VXI-11 / SCPI); hot-plug compatible with NRX / NRP2 mainframes |
Product Overview

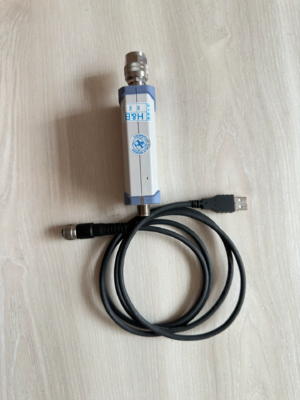

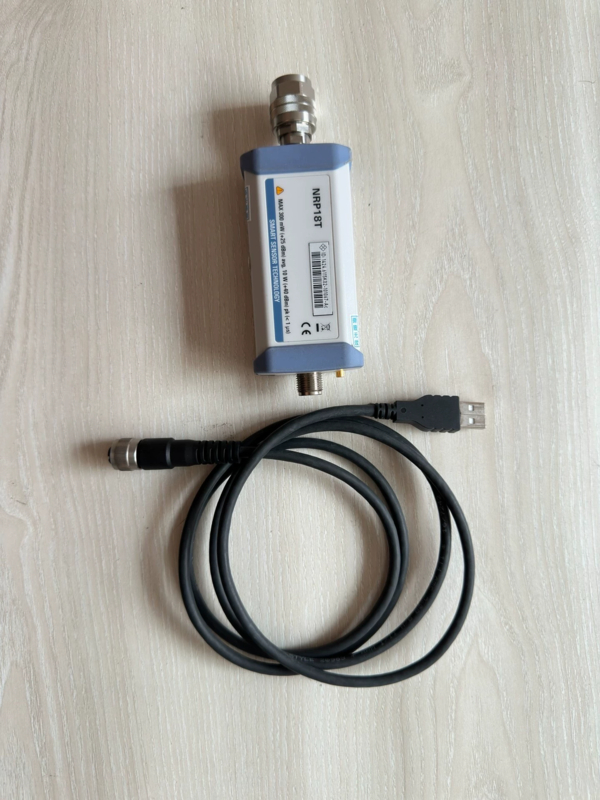

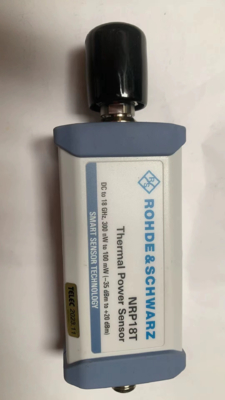

The pre-owned R&S NRP18T uses a thermoelectric sensor element to deliver traceable average-power measurements from 10 MHz up to 18 GHz with industry-leading ±0.04 dB uncertainty.
Its 55 dB dynamic span (-35 dBm to +20 dBm) and inherently flat frequency response make it ideal for calibrating signal generators, attenuators and high-linearity amplifiers, while built-in linearity and temperature compensation maintain accuracy over demanding production environments. Up to 500 samples/s stream directly over USB or Ethernet to NRX meters or any SCPI-capable programming environment, accelerating automated test lines without sacrificing metrology-grade precision.
Supplied fully tested, freshly calibrated and firmware-current, this NRP18T offers immediate, cost-effective power metering backed by Rohde & Schwarz reliability.
Request a Quote
Interested in Rohde & Schwarz R&F NRP18T or a similar model?
- Drop your WhatsApp number or e-mail on our website and we will:
- Send a tailored quotation and any current promotions
- Provide extra photos, test data, and full configuration details
- Discuss shipping, duties, warranty, and any other specifics you need
Looking for other models? Our inventory changes daily—ask for the latest list of spectrum analyzers and RF equipment.
